closeEURO3 STANDARDS
New generation engine with higher power.
3-IN-1 KEY
Easy ignition system and equipped with anti-theft.
ERGONOMIC RIDE
The seat position, handle and footrest are designed for a comfortable ride.

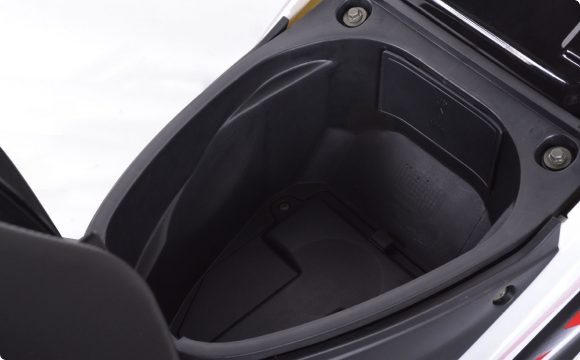

STORAGE COMPARTMENT
Large underseat storage space for rider convenience.

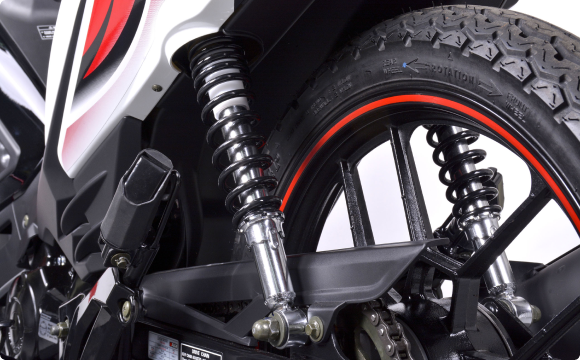

DUAL SHOCK RR ABSORBERS
Absorbs loads better for a more comfortable ride.
2 PISTON CALIPER FRONT
ERGONOMIC

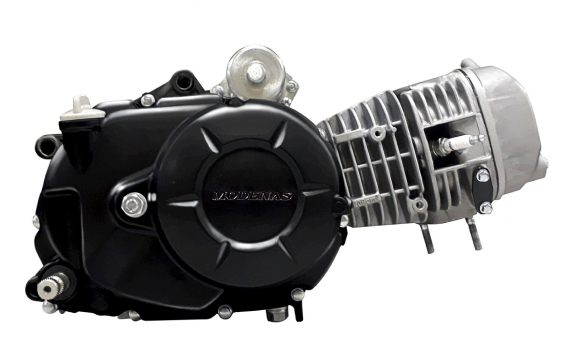

Engine
4-stroke SOHC, Single Cylinder
Fuel System
Carburetor, PZ19
Displacement
109.2cc
Fuel Type
Unleaded Petrol
Bore X Stroke
50.0 mm x 55.6 mm
Ignition
Magneto to CDI
Compression Ratio
8.8:1
Starting System
Primary Kick & Electric Starter
Cooling System
Air Cooled
Fuel Tank Capacity
4.2 L
Type
4 Speed, Rotary
Primary Reduction Ratio
4.058
Clutch
Multiple Disc, Centrifugal and Wet
Final Reduction Ratio
2.643
Driving System
Drive Chain
Frame Type
Pipe Backbone, Steel Pipe
Overall Length
1,900 mm
Front Suspension
Telescopic Fork
Overall Width
685 mm
Rear Suspension
Trailing Swing arm, Arm Suspension
Overall Height
1,100 mm
Front Brake
Disc
Seat Height
760 mm
Rear Brake
Drum
Ground Clearance
145 mm
Front Tyre
70/90-17M/C 38P, Tubeless
Wheelbase
1,240 mm
Rear Tyre
80/90-17M/C 44P, Tubeless
Curb Weight
94.5 kg*
Battery
12v 6Ah
** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).
Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual.
Specifications are subject to change.
