Home Products KRISS 110 DISC BRAKE

CONCEPT

2023

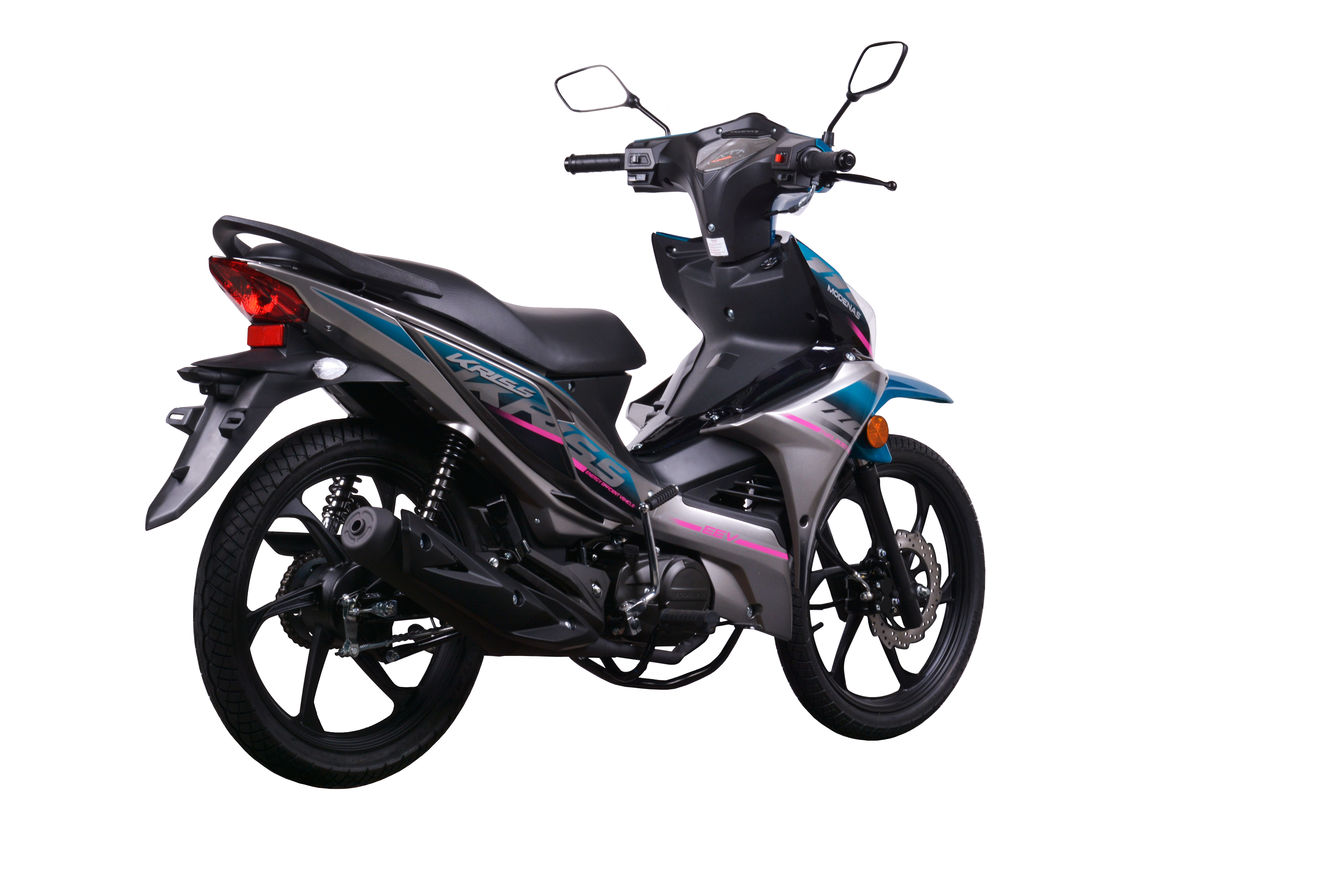

KRISS 110 DISC BRAKE

Introducing the 2023 Ikon Rakyat, now with three new color options.

The Modenas Kriss 110 Disc Brake is a budget-friendly moped with a neat and sporty design with attractive graphics. It features a single-cylinder EEV, 4 stroke, SOHC, 108 cc engine, that produces 4.9 kW (6.57 hp) / 8000 RPM maximum power and 6.7 Nm / 6000 RPM maximum torque.

FEATURE

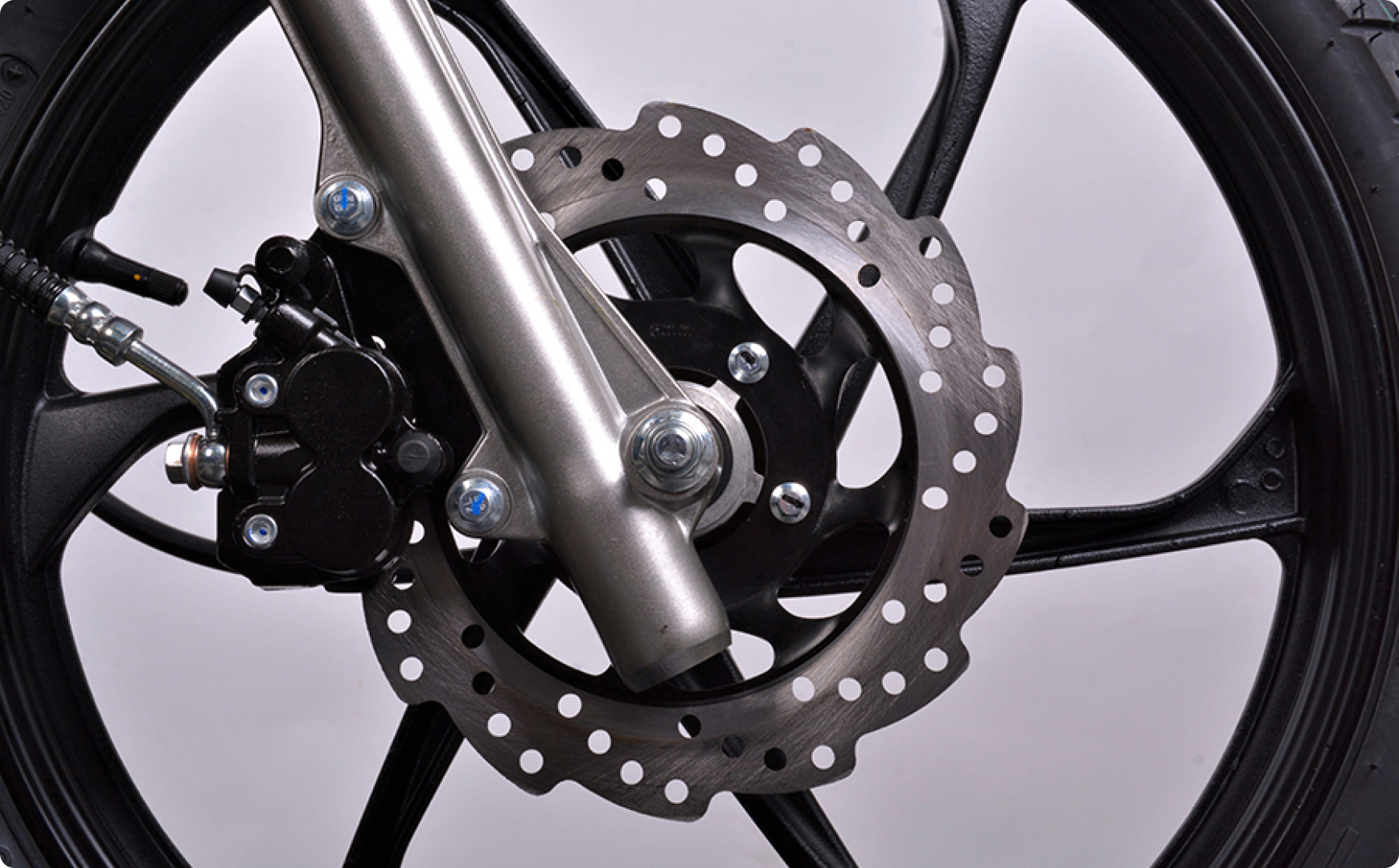

FRONT DISC BRAKE

Front disc brakes equipped with 2 caliper pistons that improves braking accuracy in all weather conditions.

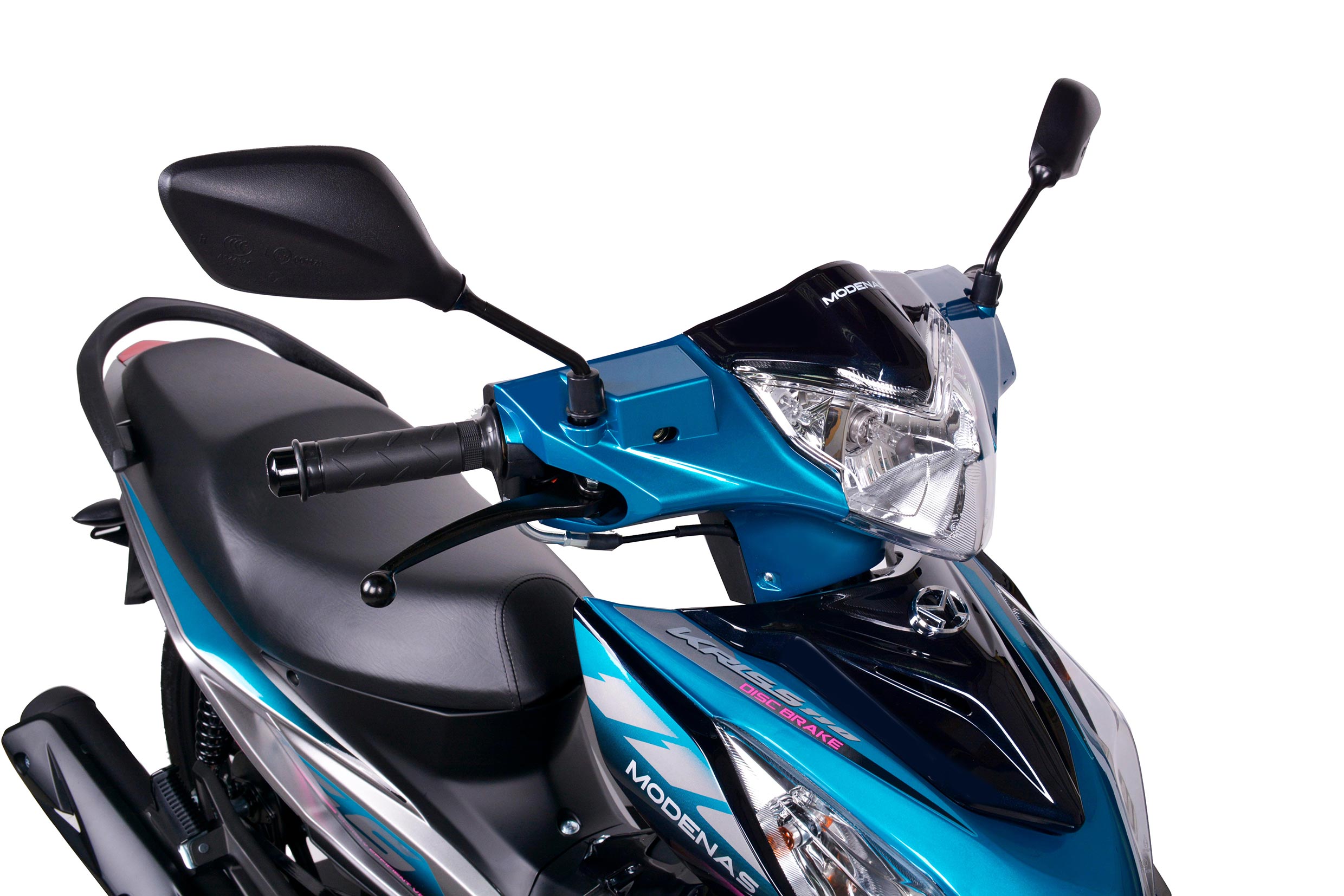

MULTI-REFLECTOR HEADLIGHT

The multi-reflector headlight provides clearer and brighter vision, helps you to see and be seen.

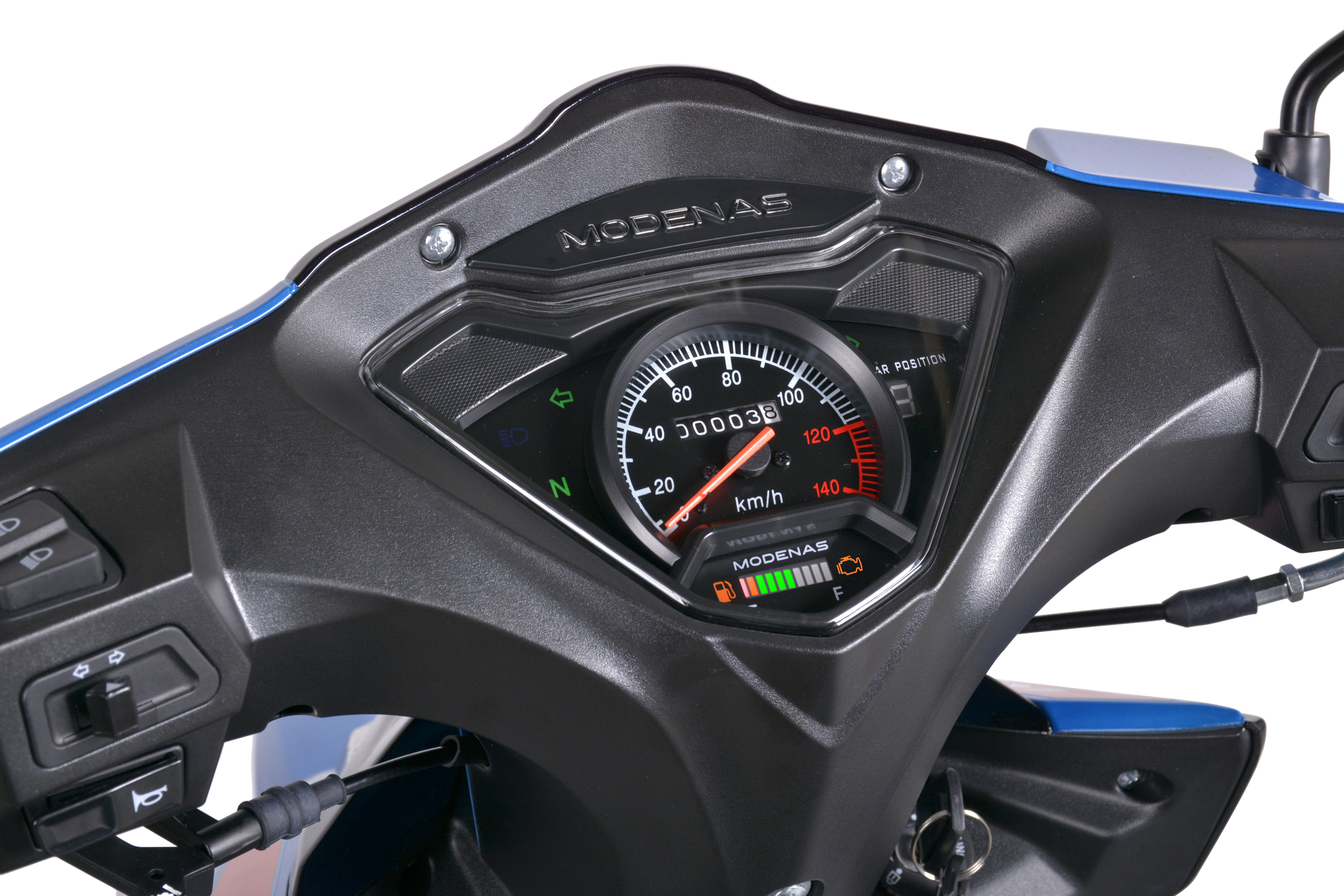

LED FUEL LEVEL GAUGE & GEAR INDICATOR

The enhanced design of the instrument panel is easy to read and equipped with LED fuel level gauge.

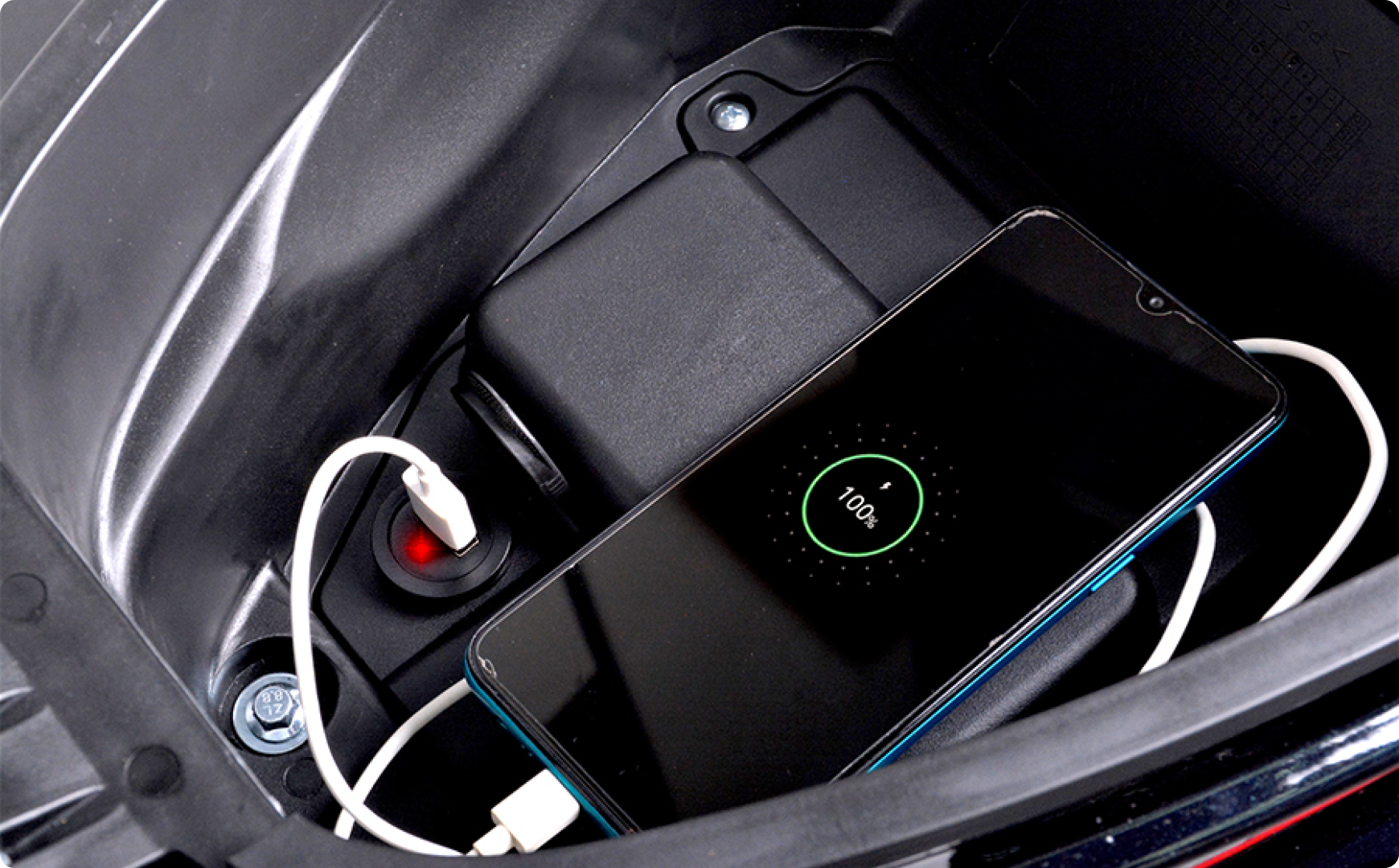

USB CHARGING PORT

Equipped with a USB charging port for your convenience.

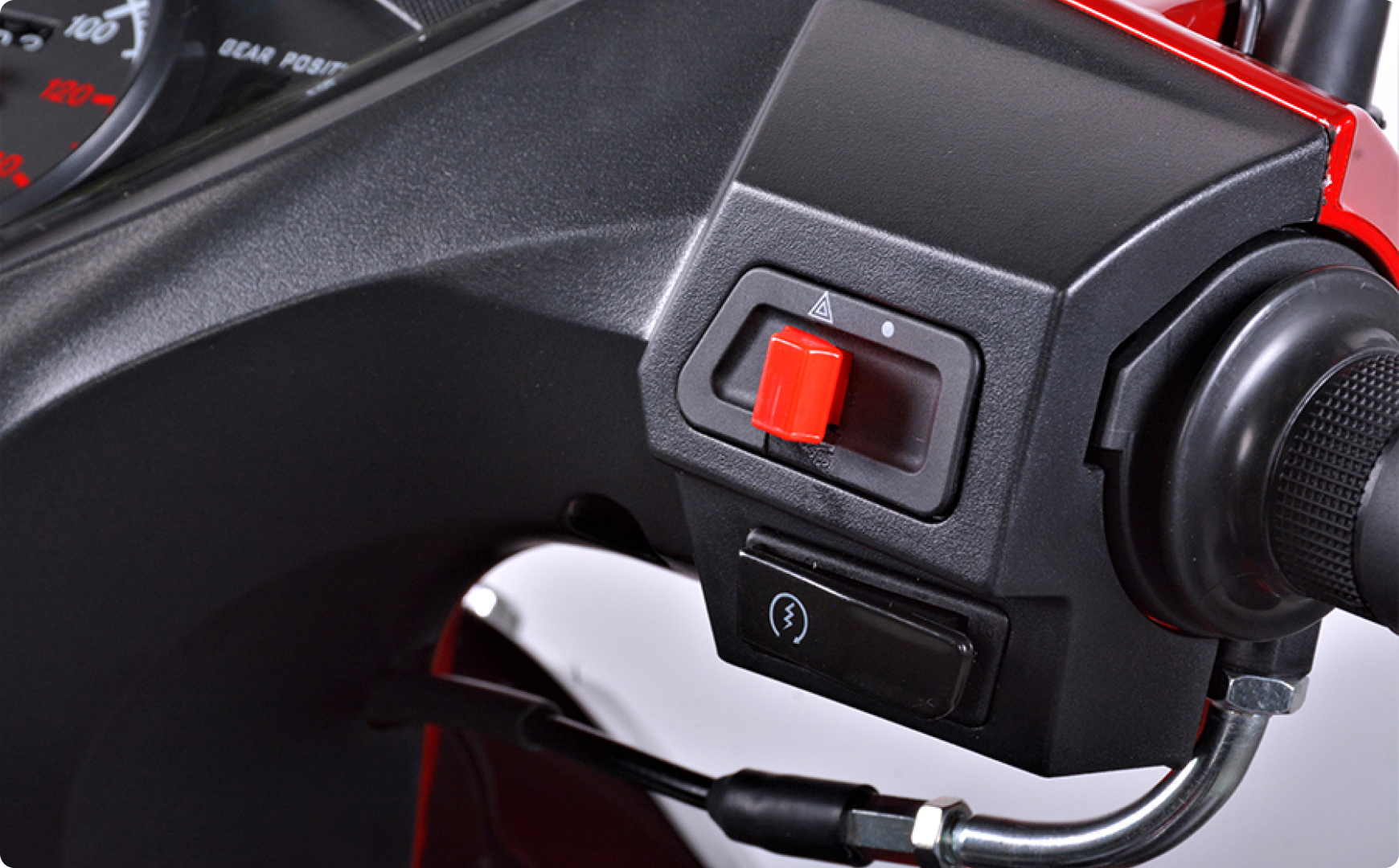

HAZARD LIGHTS SWITCH

This warning system is equipped for your safety.

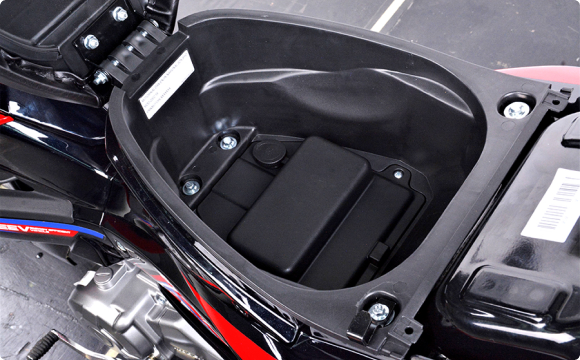

6.6L STORAGE COMPARTMENT

Large underseat storage space for rider convenience

SPECIFICATIONS

2 PISTON CALIPER FRONT

DISC BRAKE

USB CHARGING

PORT

6.6 LITRE

STORAGE COMPARTMENT

ENGINE

Engine

4-stroke SOHC, Single Cylinder

Fuel System

Carburetor, PZ19

Displacement

110 cm3

Fuel Type

Unleaded Petrol

Capacity

108cc

Ignition

Magneto to CDI

Bore X Stroke

49.5 mm x 52.4 mm

Starting System

Primary Kick & Electric Starter

Compression Ratio

9.7:1

Cooling System

Air Cooled

Fuel Tank Capacity

4.2 L

TRANSMISSION

Type

4 Speed, Rotary

Primary Reduction Ratio

4.058

Clutch

Multiple Disc, Centrifugal and Wet

Final Reduction Ratio

2.571

Driving System

Drive Chain

CHASIS

Frame Type

Pipe Backbone, Steel Pipe

Overall Length

1,900 mm

Front Suspension

Telescopic Fork

Overall Width

830 mm

Rear Suspension

Trailing Swing arm, Arm Suspension

Overall Height

1,185 mm

Front Brake

Disc

Ground Clearance

145 mm

Rear Brake

Drum

Wheelbase

1,240 mm

Front Tyre

70/90-17M/C 38P, Tubeless

Curb Weight

97 kg*

Rear Tyre

80/90-17M/C 44P, Tubeless

ELECTRICAL SYSTEM

Battery

12v 5Ah

DOWNLOAD

Get brochure & catalogue of this model to learn more about the motorcycle model.

BROCHURE-KRISS 110 D...

Kriss110DB-Brochure_...

5.27 MB

PARTS CATALOGUE

PARTS-CATALOGUE-KRIS...

49.13 MB

** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).

Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual.

Specifications are subject to change.
