CONCEPT

NEW MODEL

2022

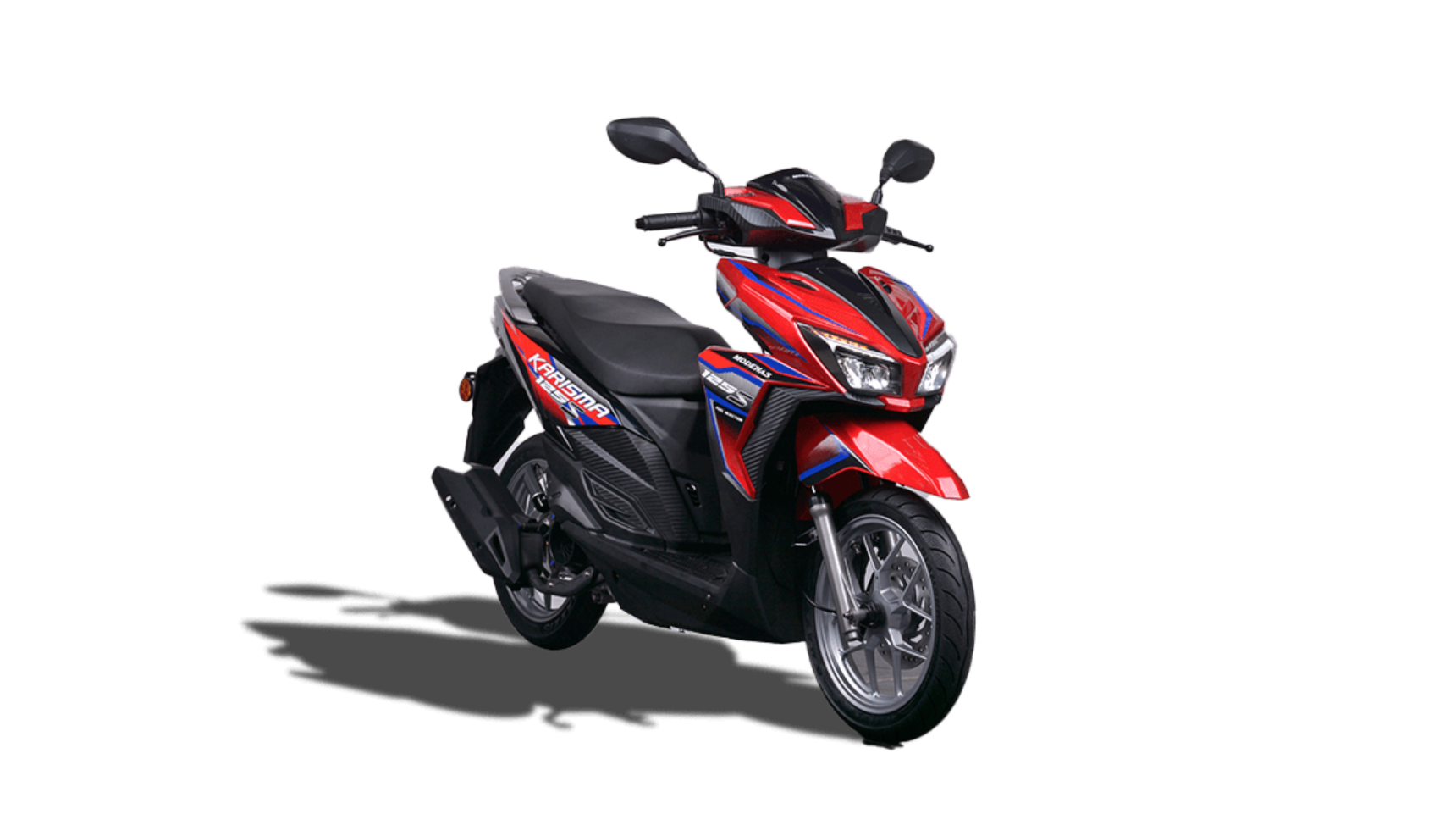

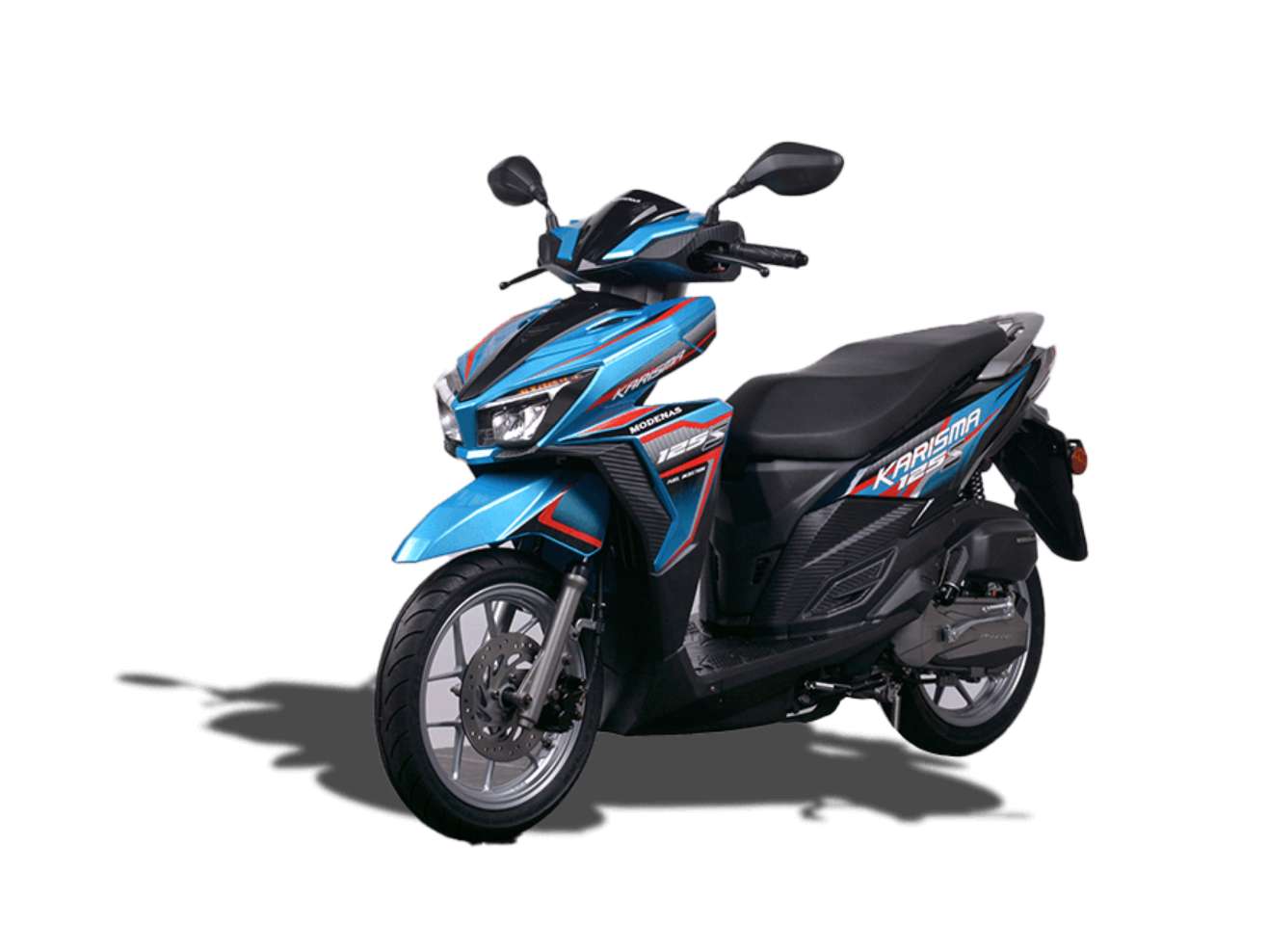

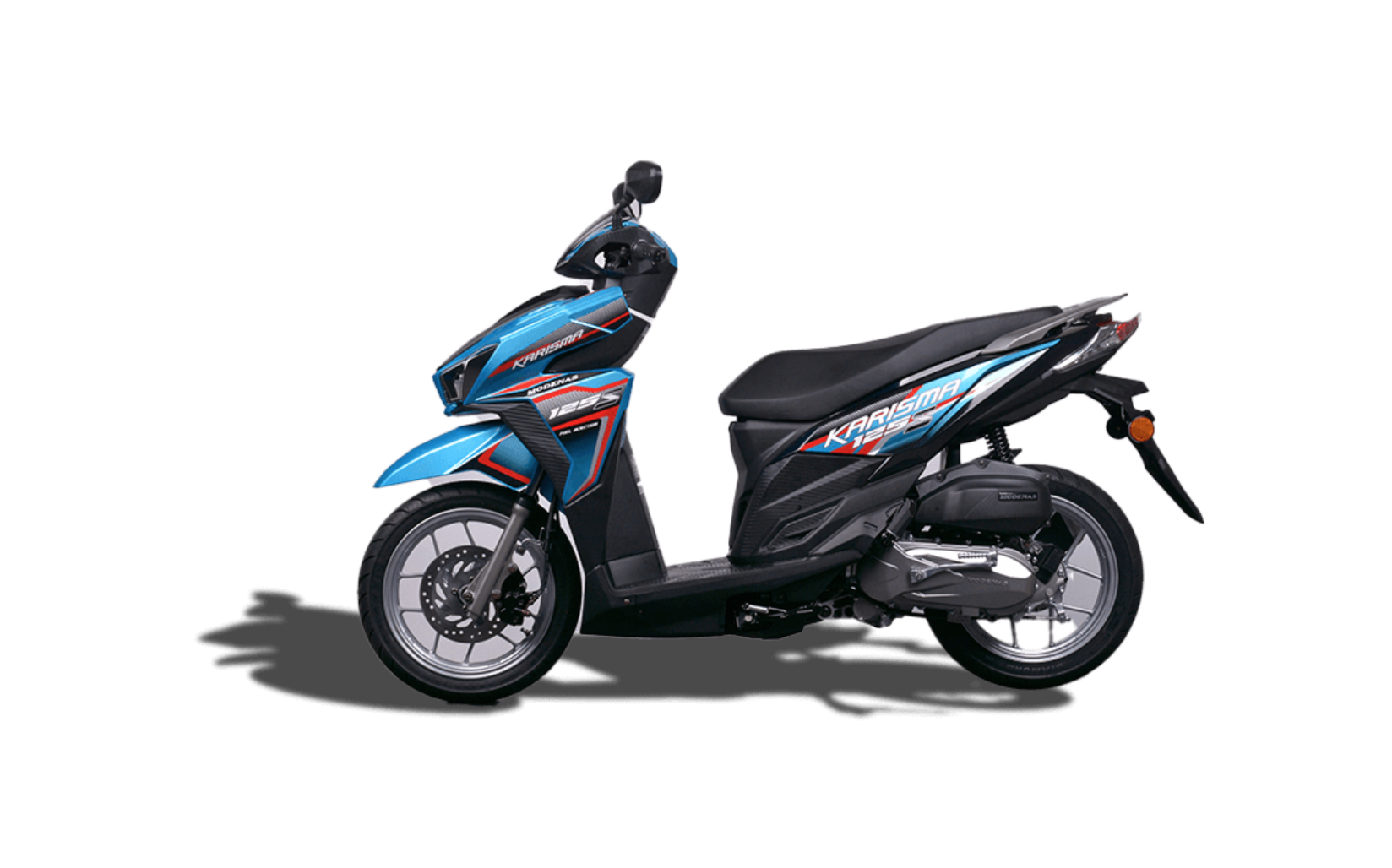

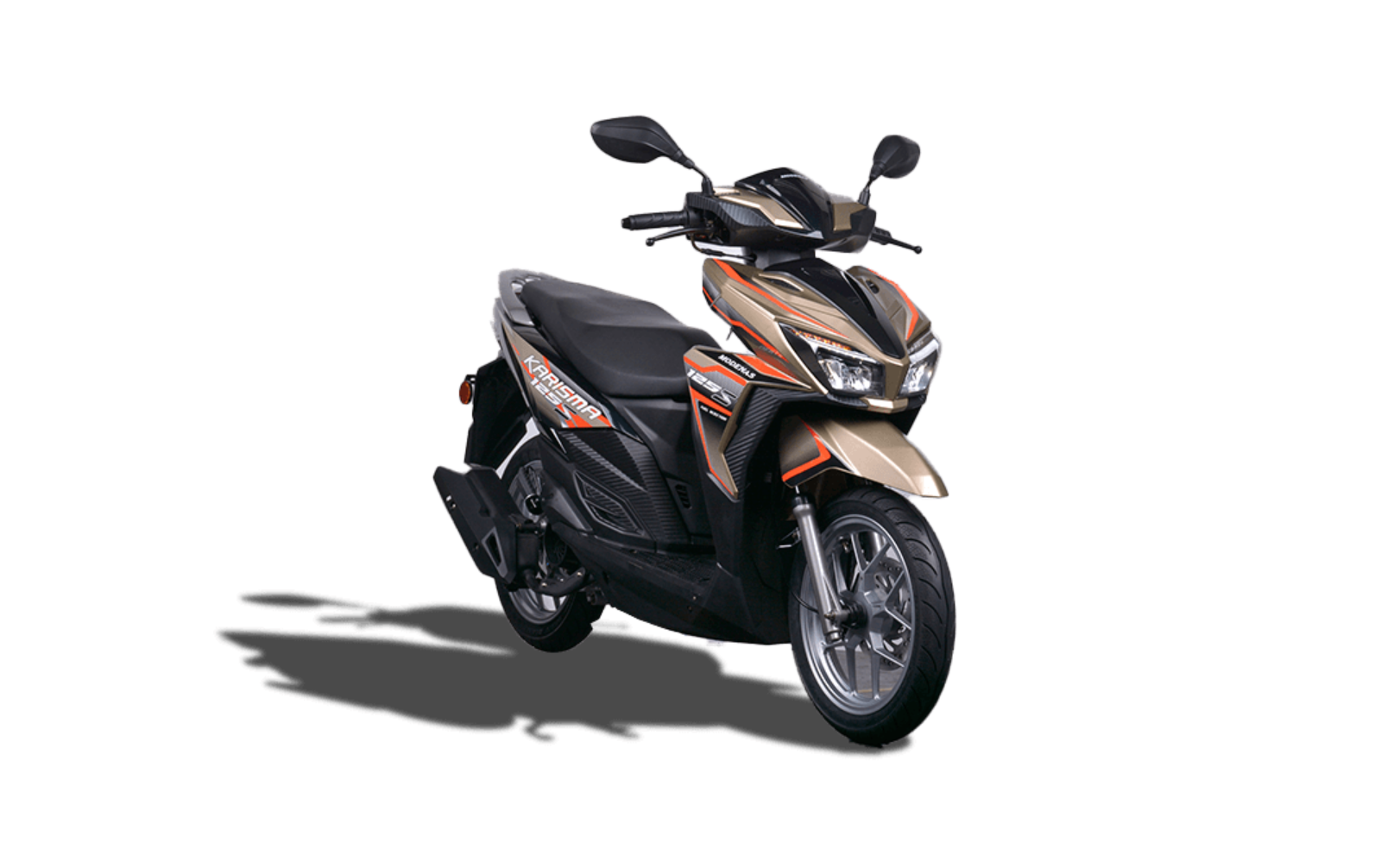

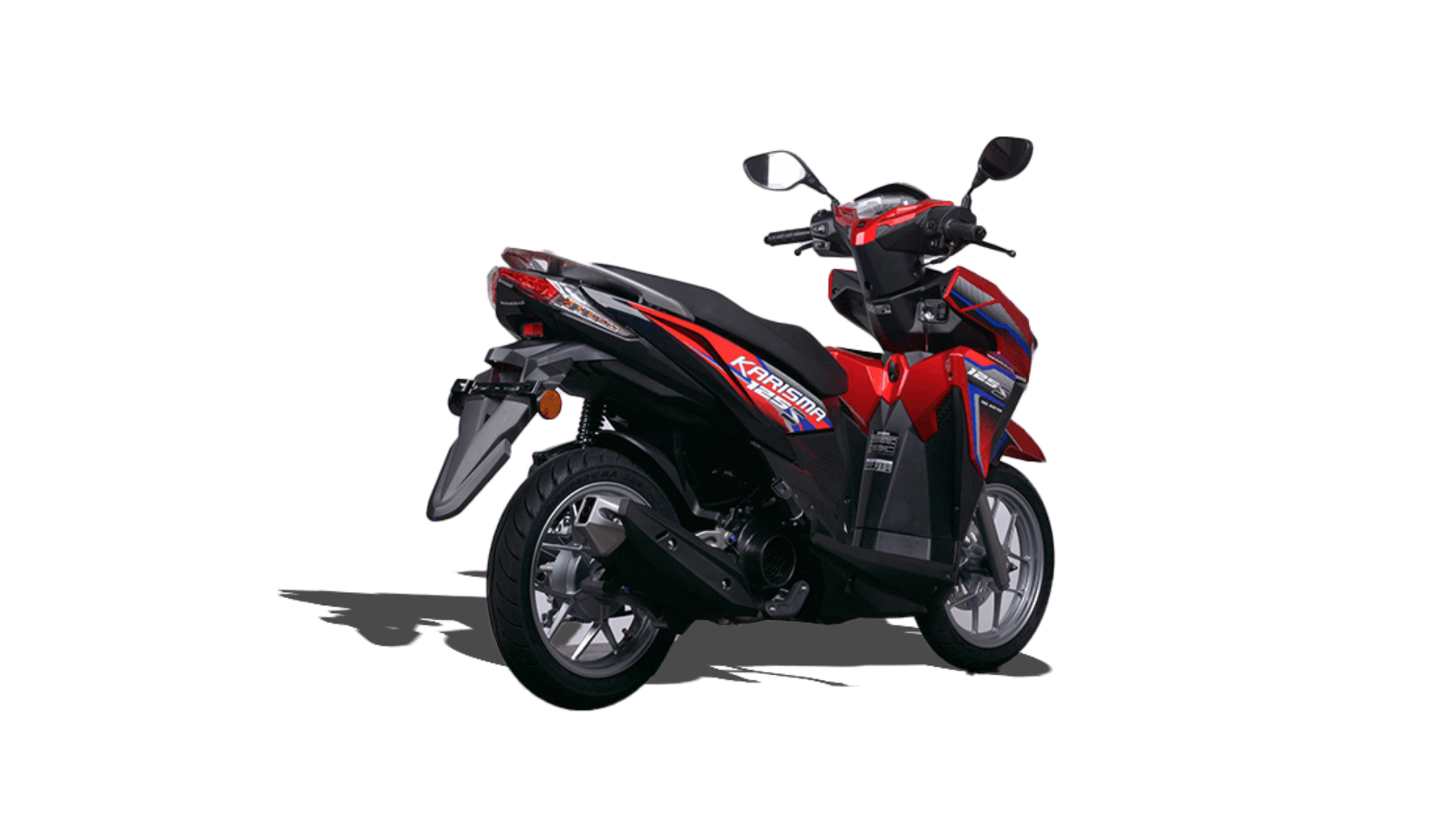

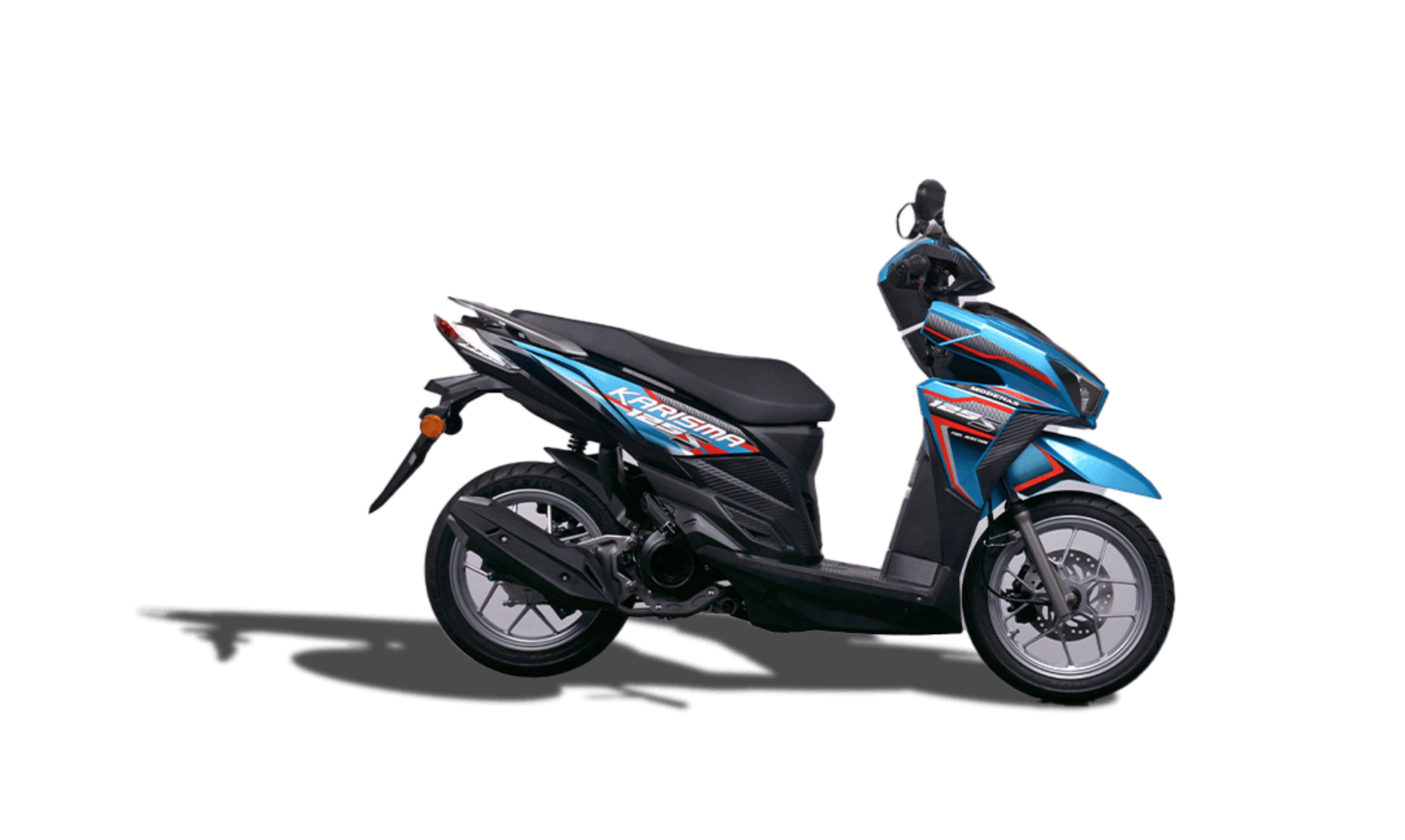

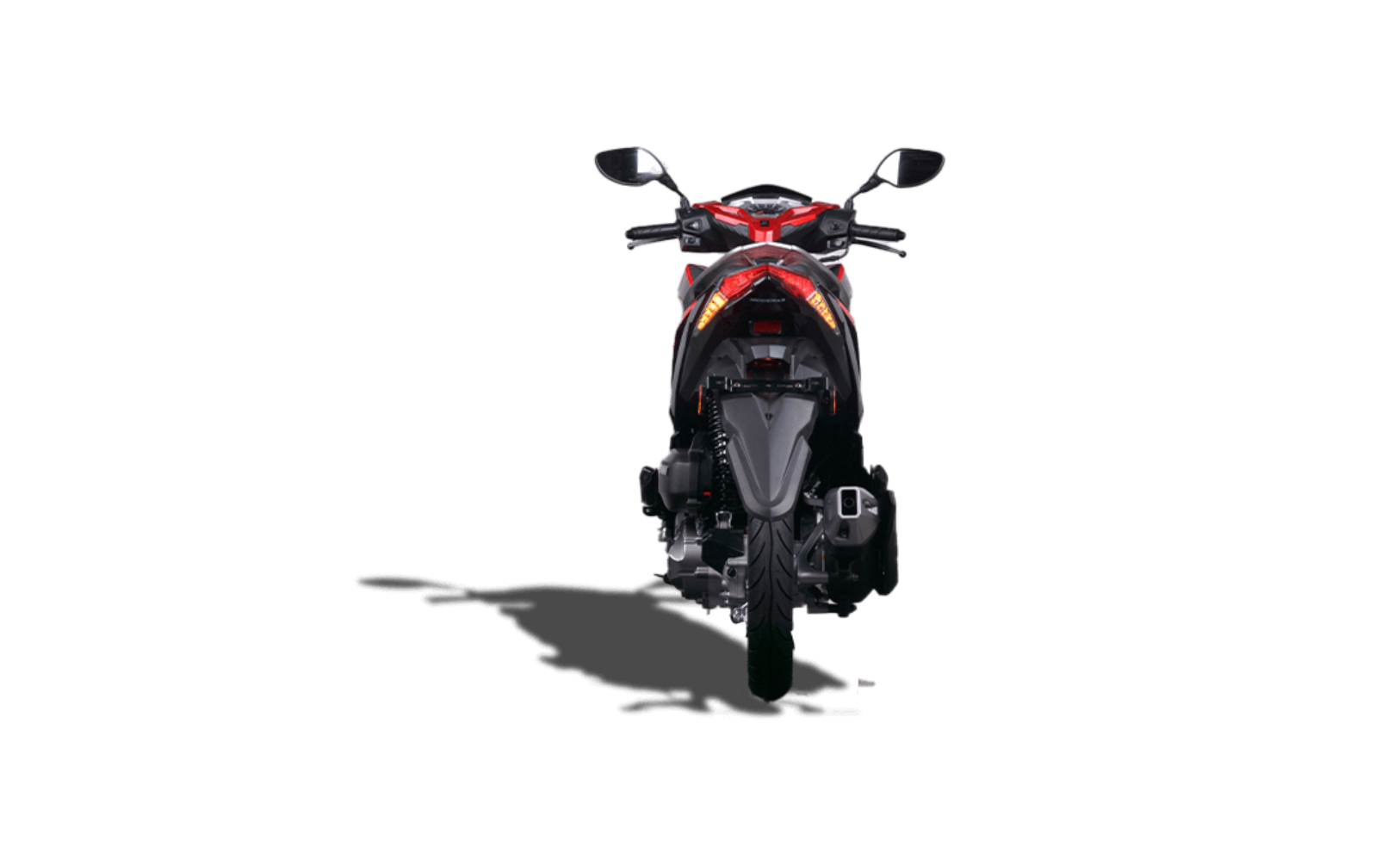

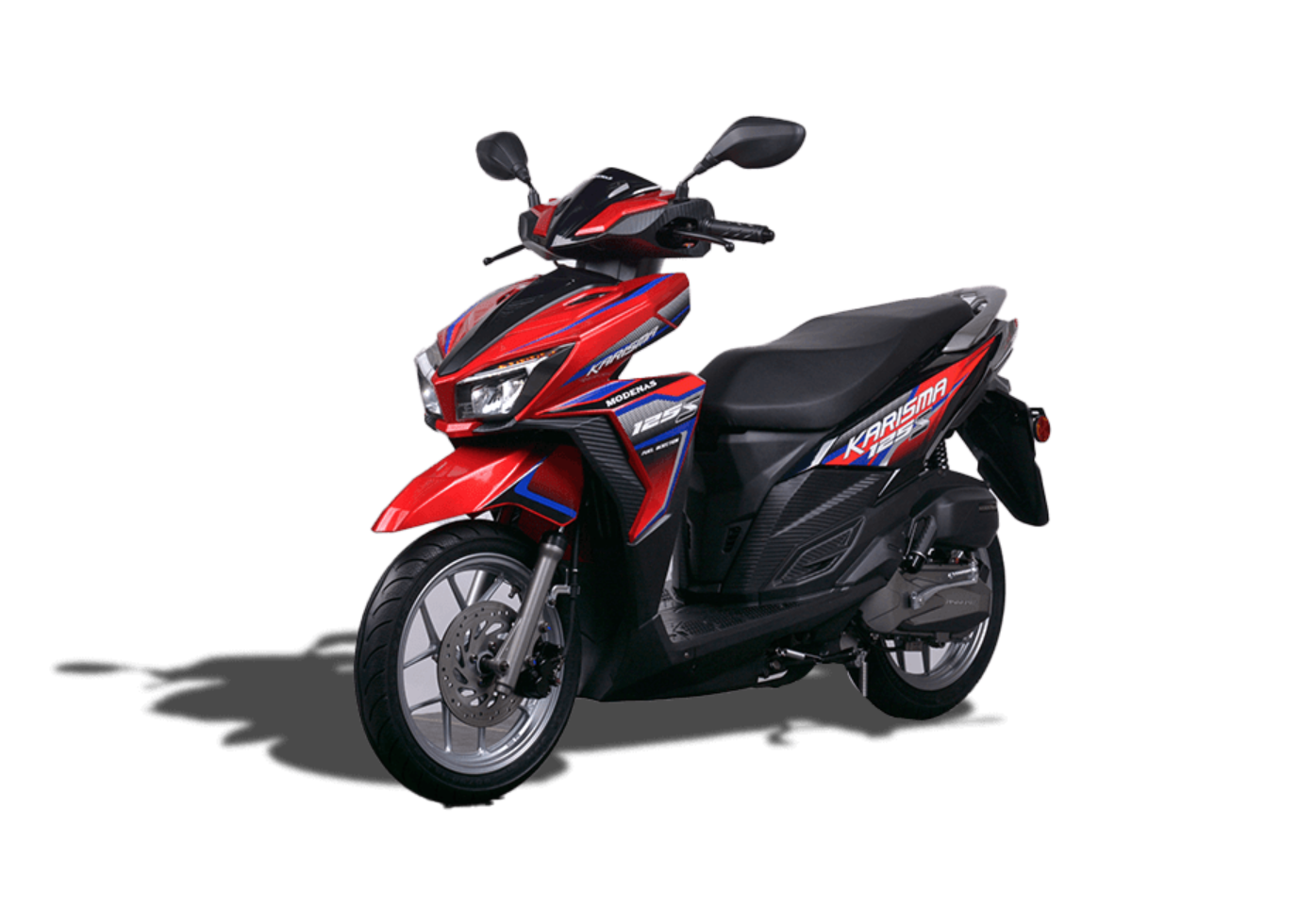

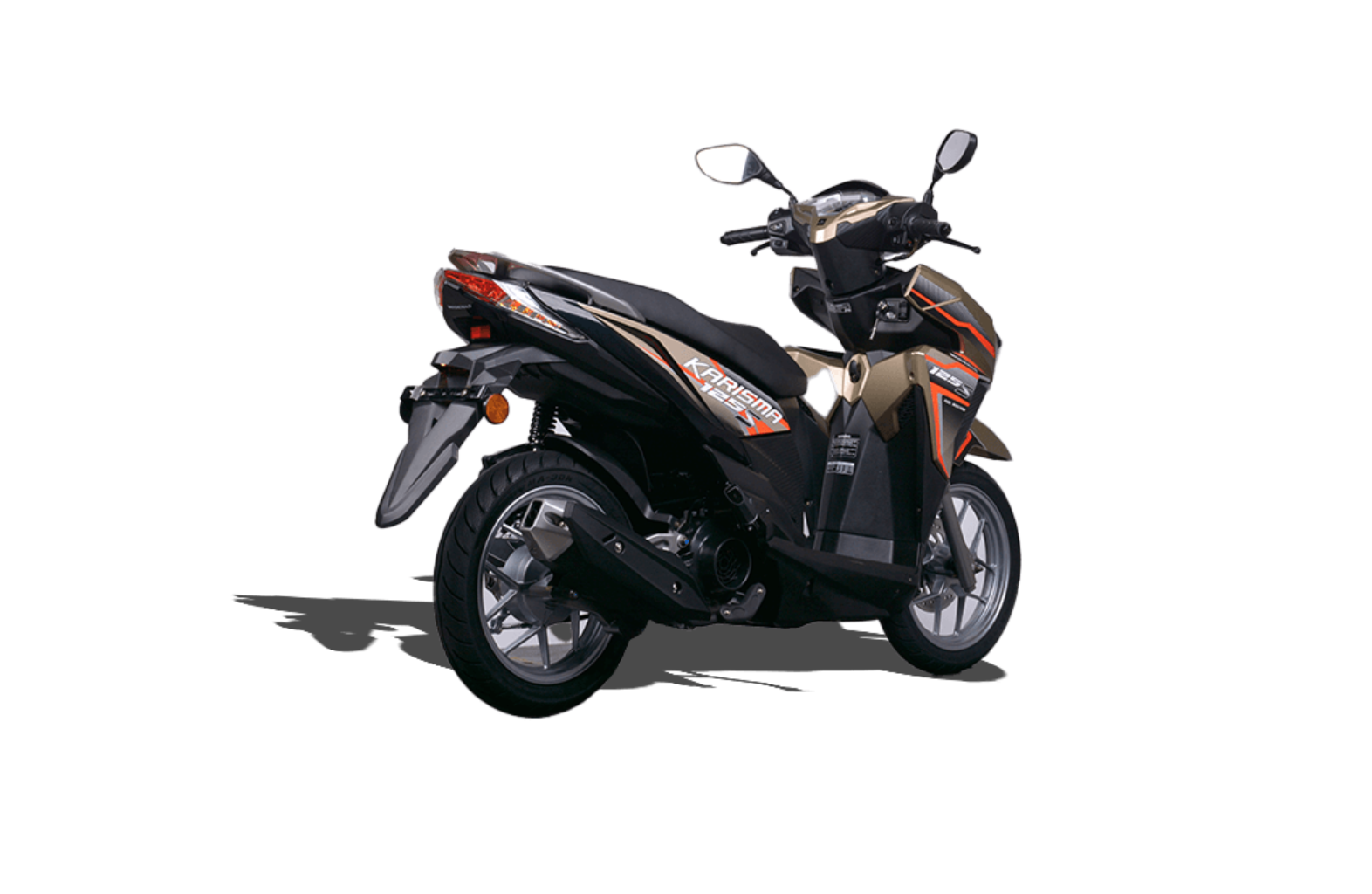

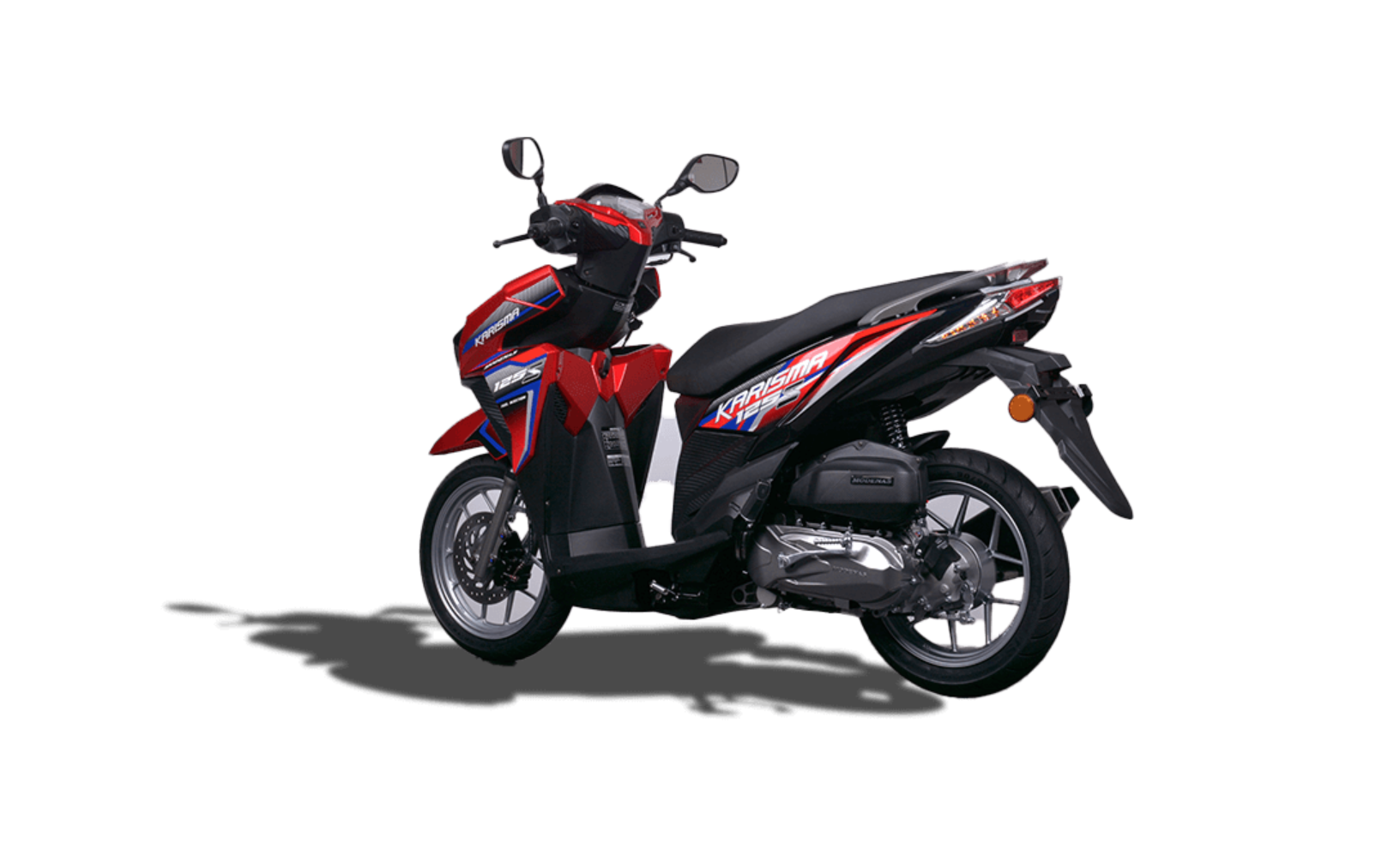

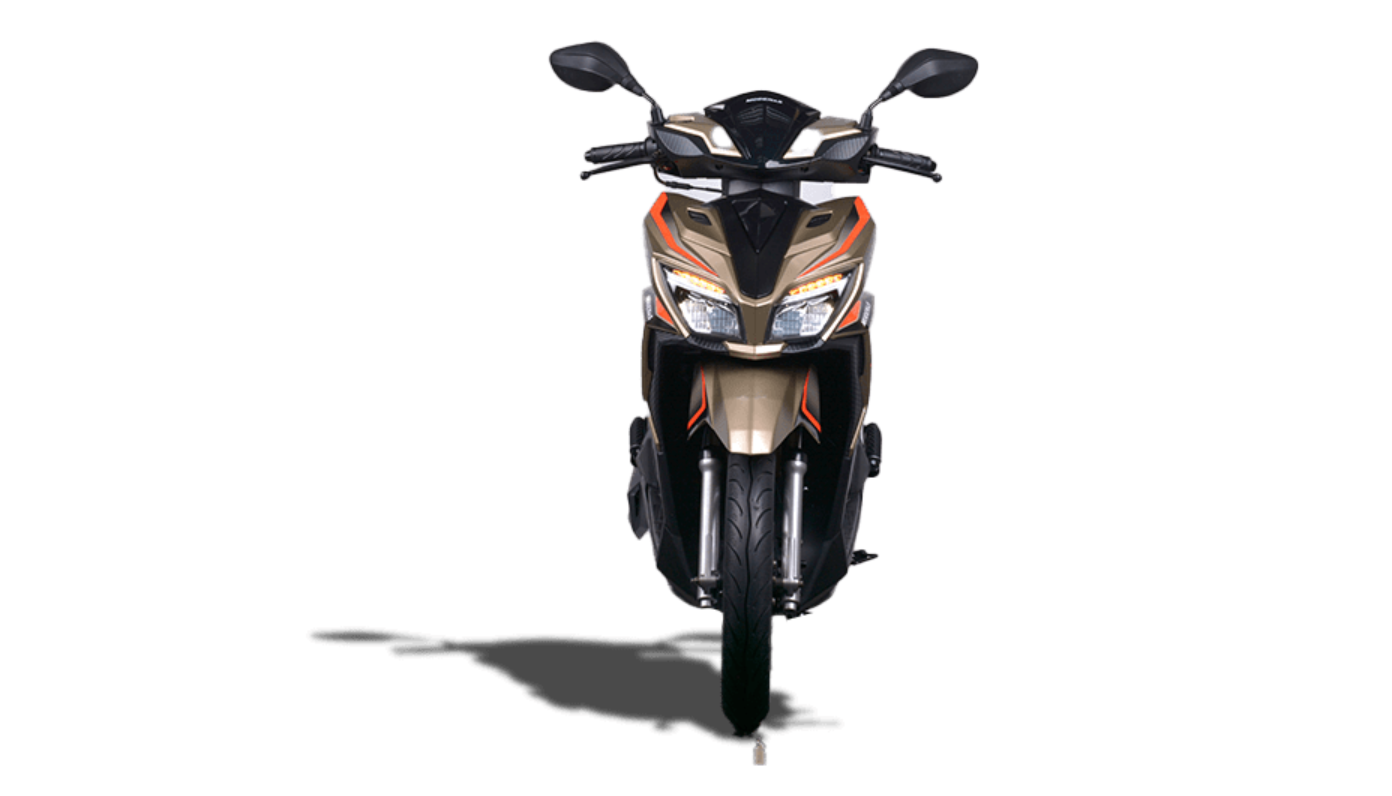

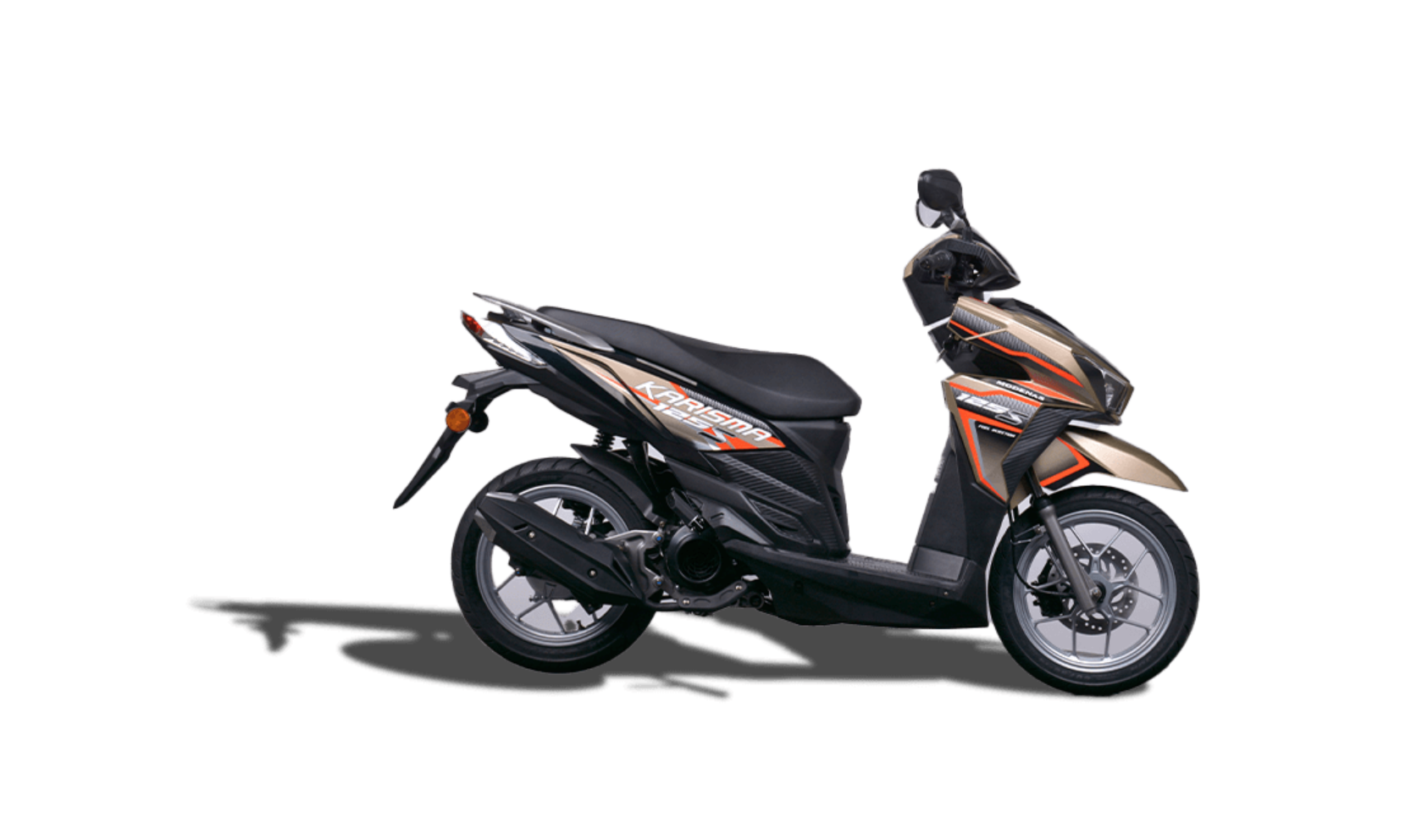

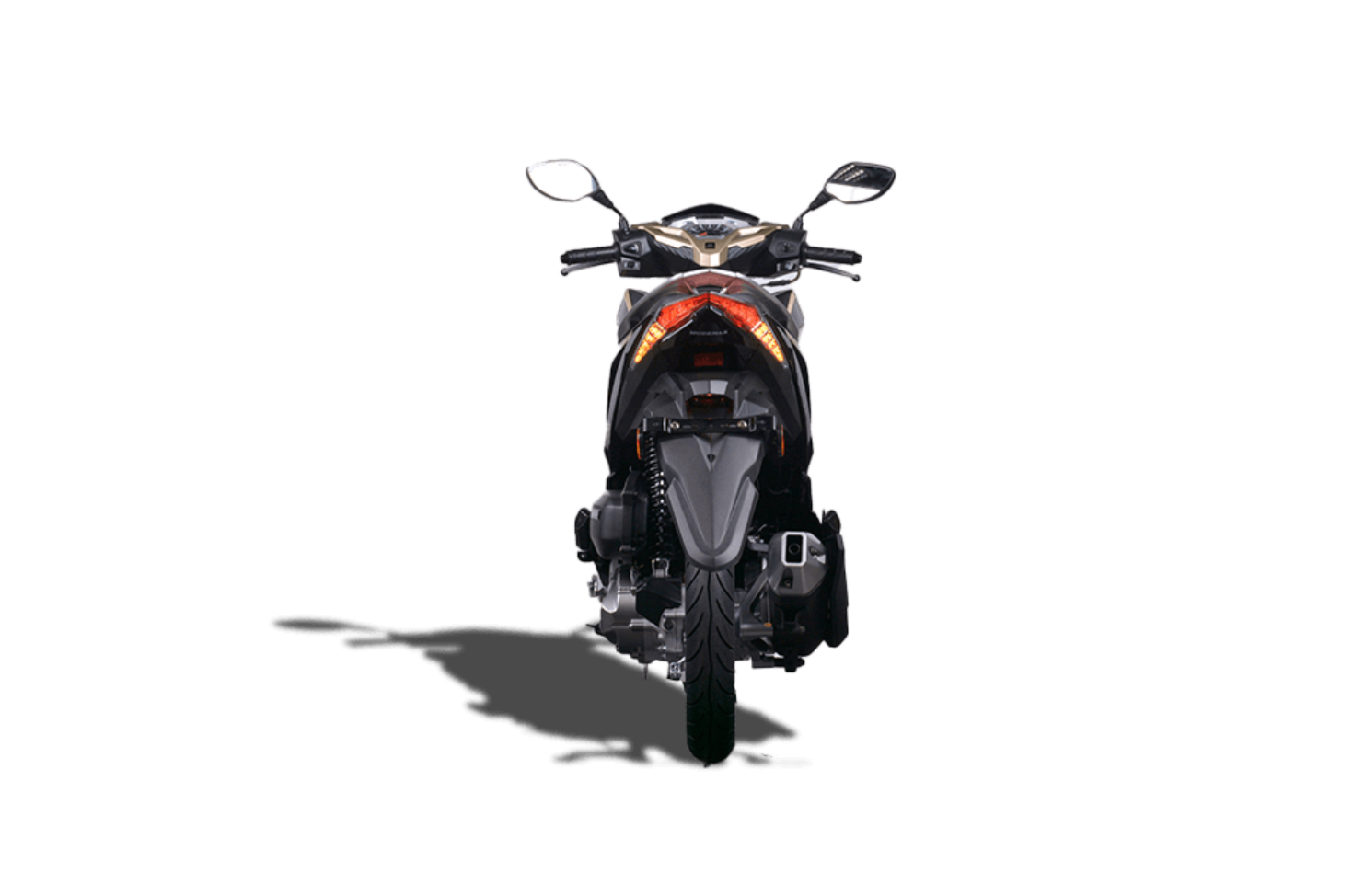

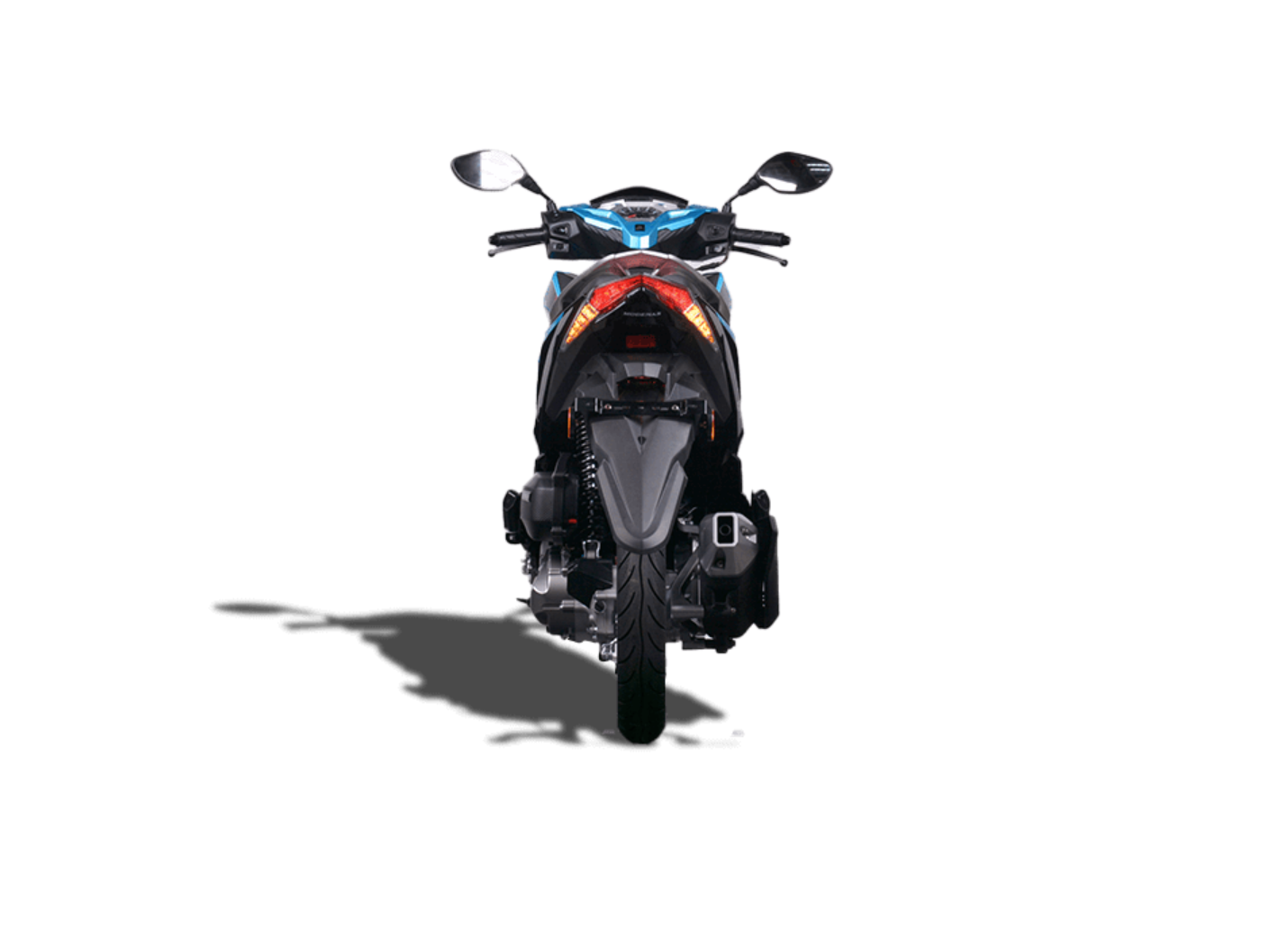

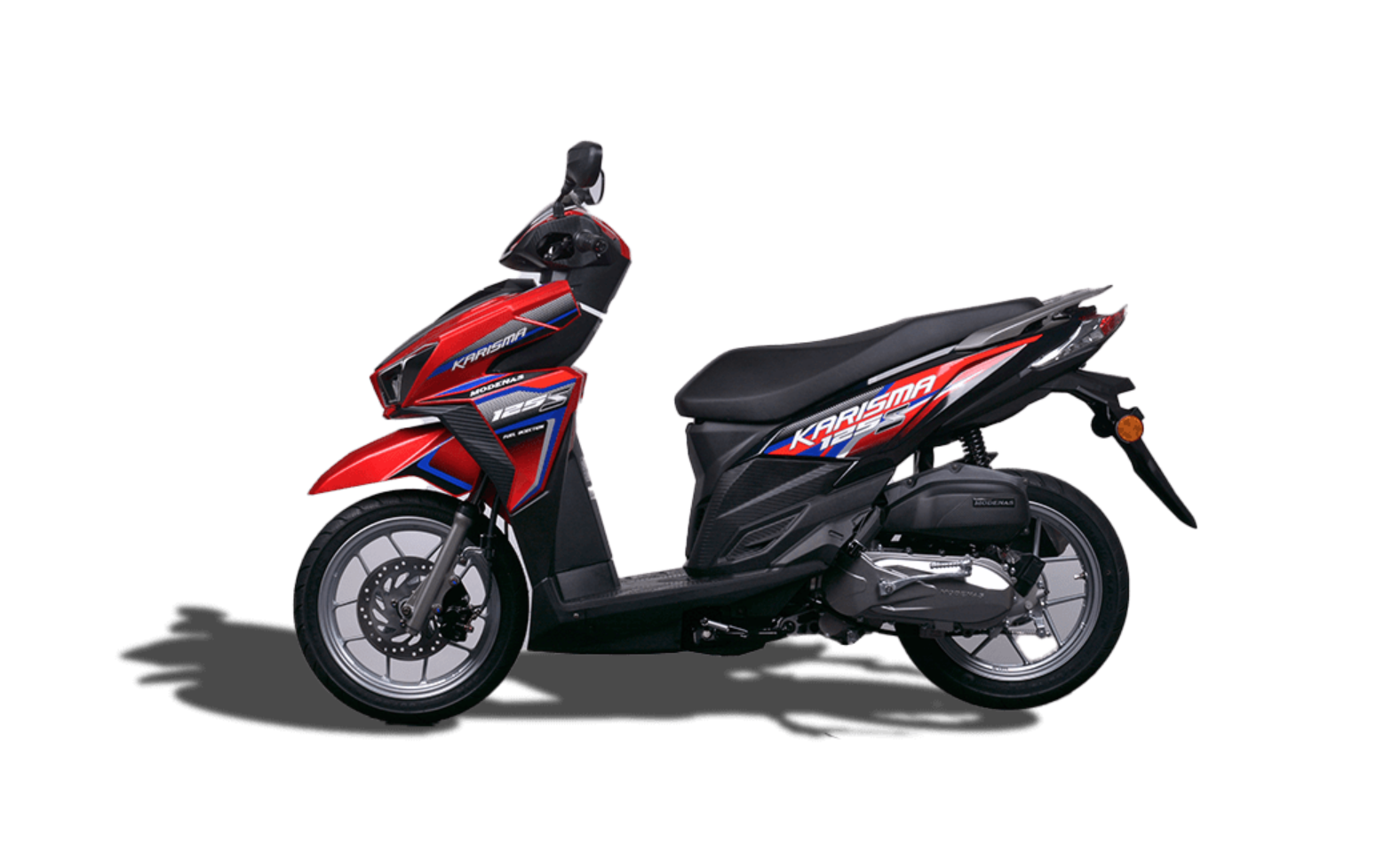

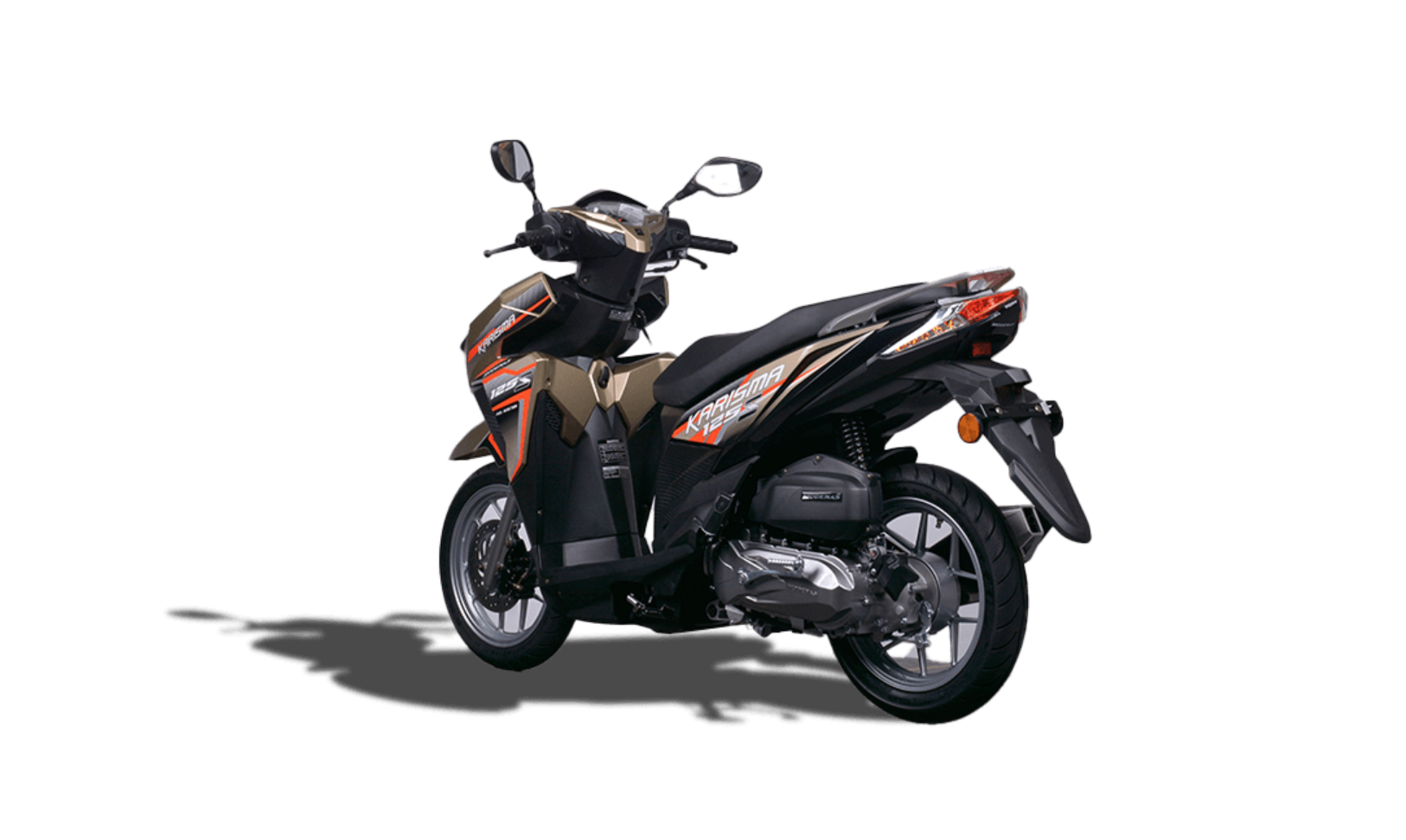

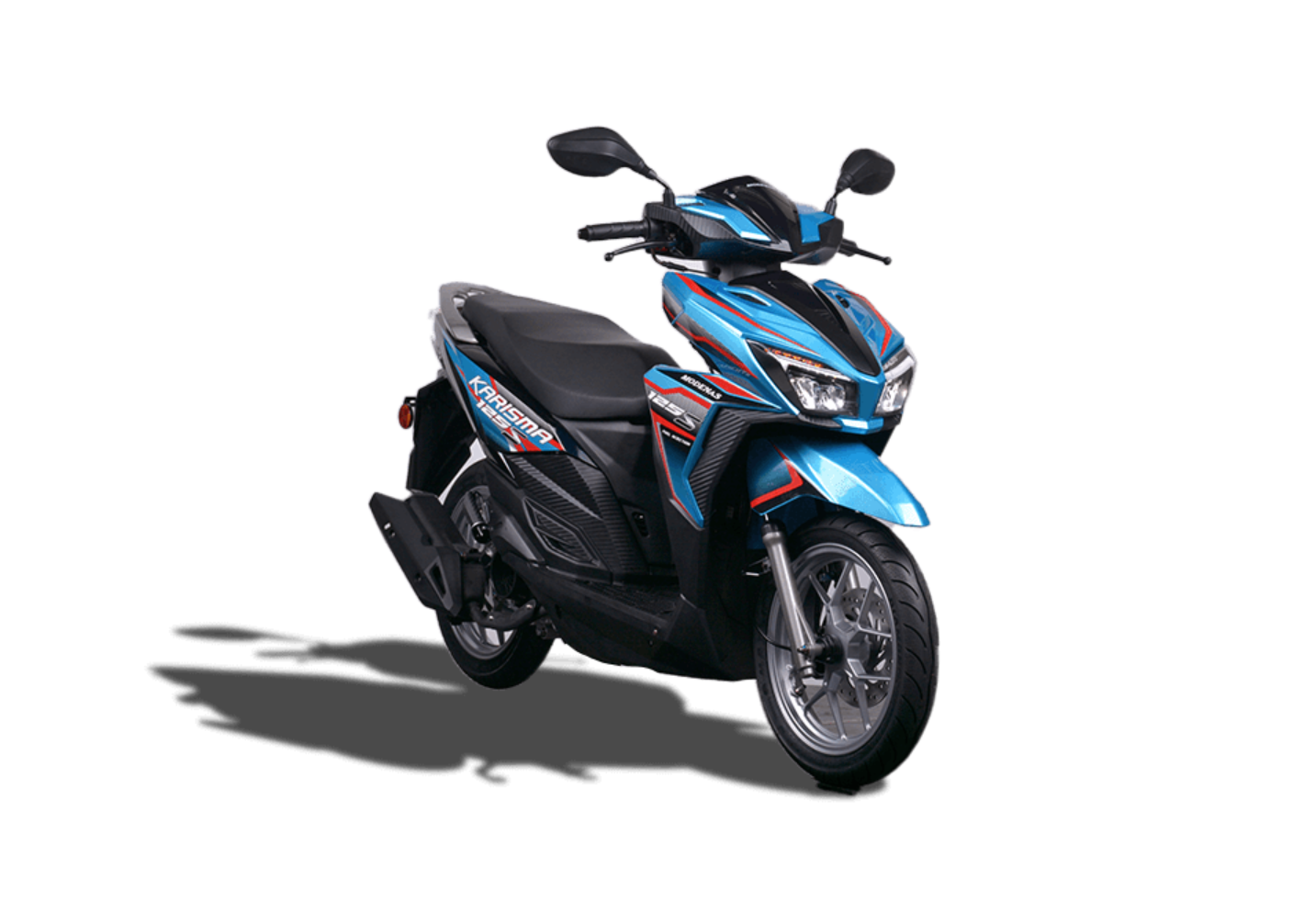

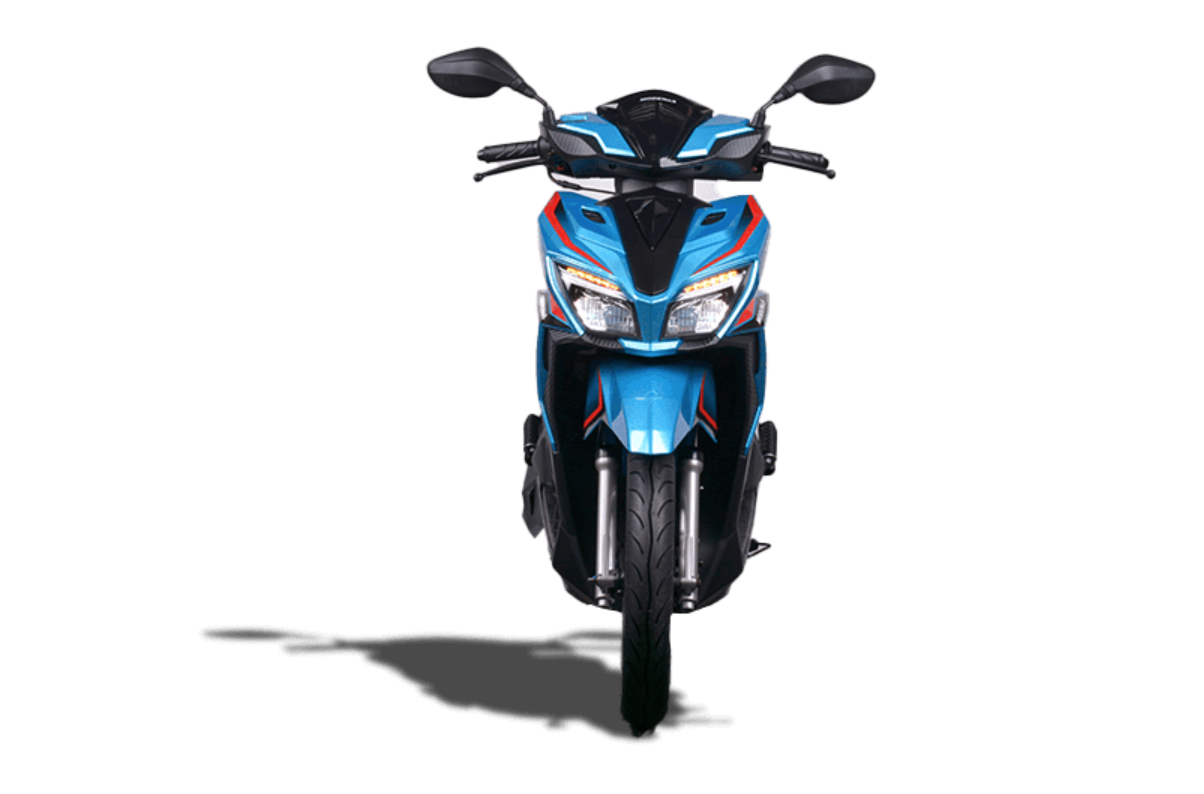

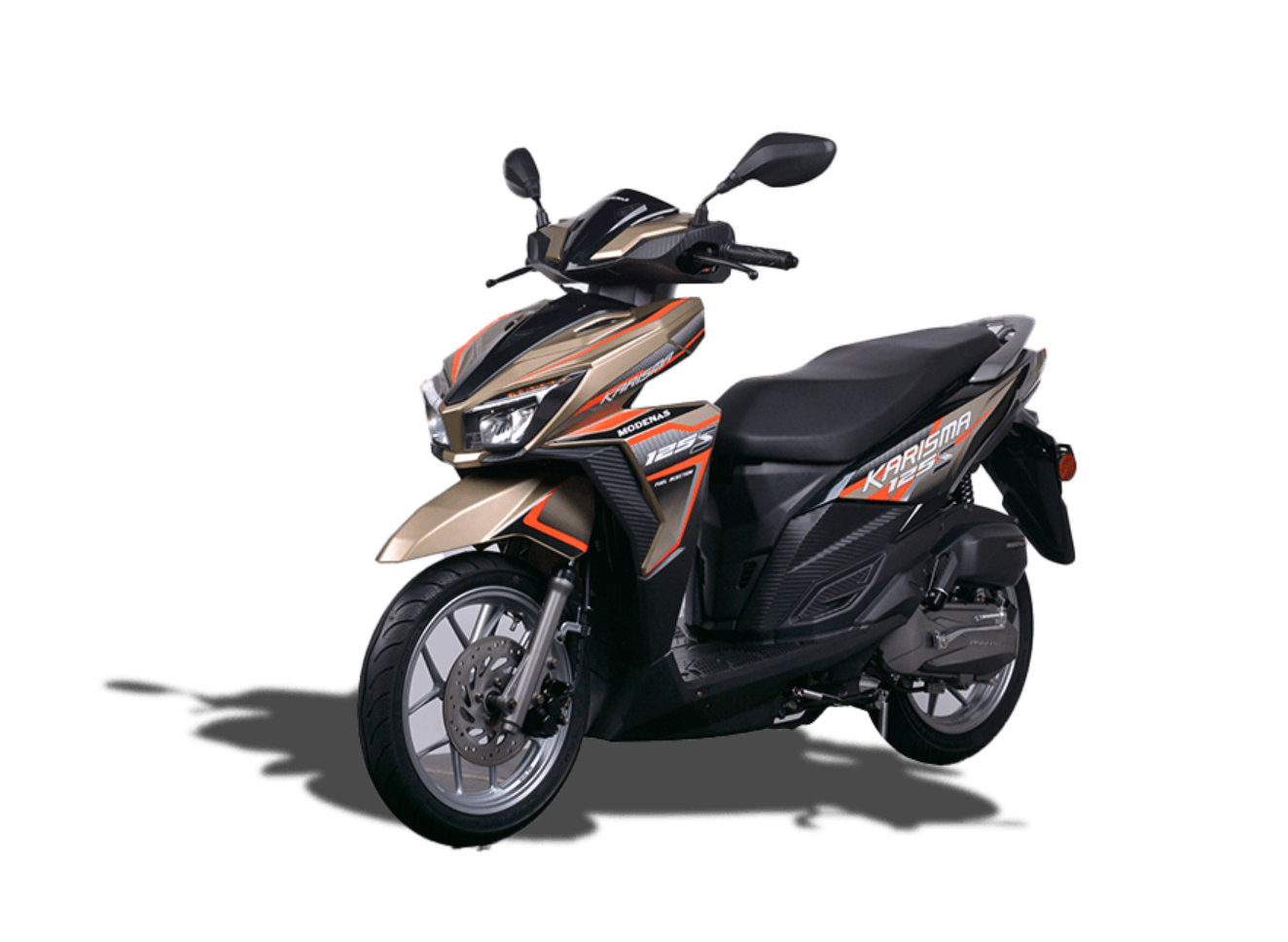

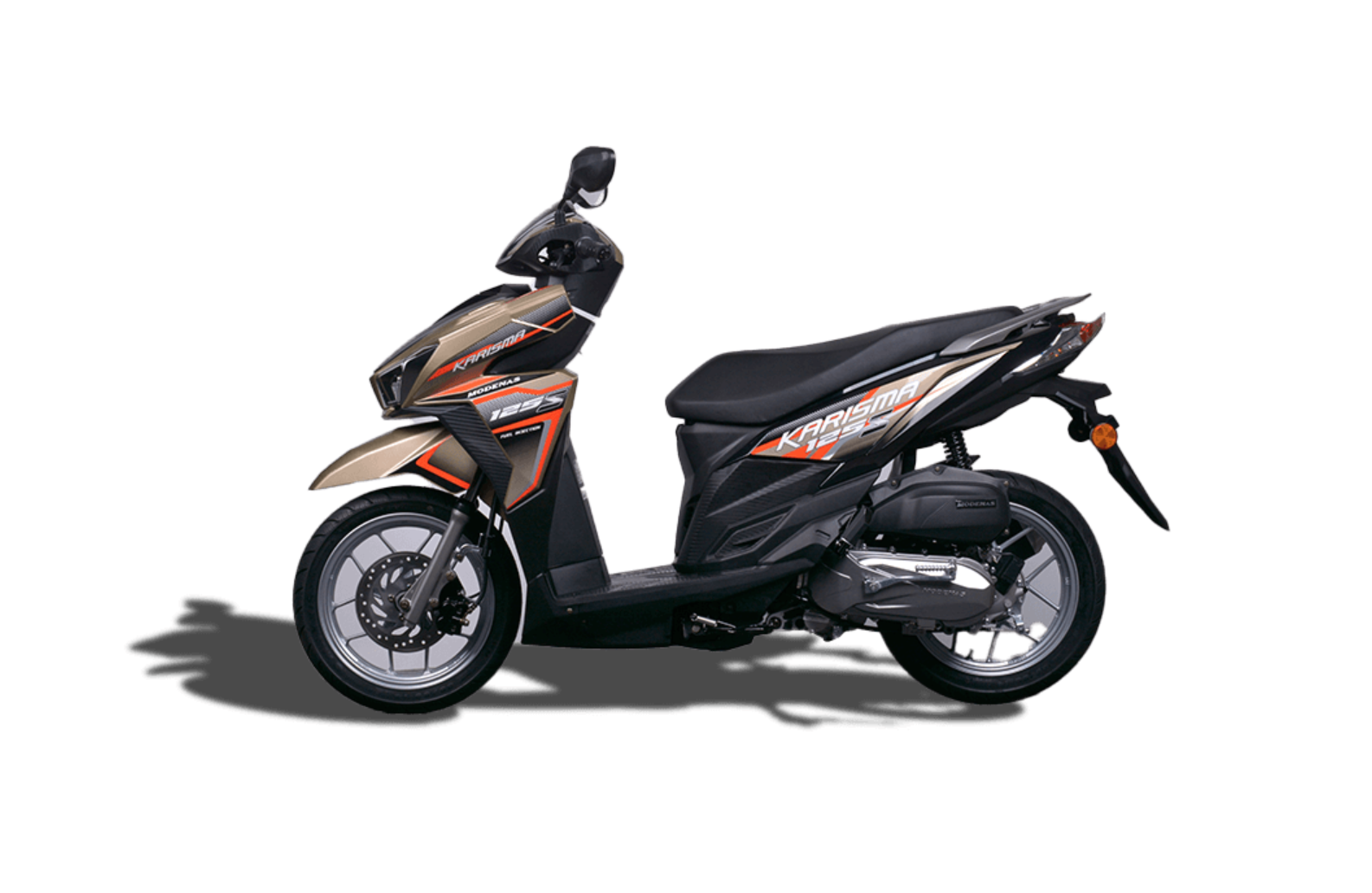

KARISMA 125S

Karisma 125 is a scooter from Modenas with stylish design and comfortable to ride especially for long distance trip. The Scooter have modern and stylish meter console that provide all details what you needs. Under the seat, there is spacious compartment enough to put a helmet and other things.

For Engine and performance, Modenas Karisma 125 comes with 124.66 CC, SOHC, 1-Cylinder engine with the CVT transmission. There is no info about fuel consumption for this scooter. But, with EFI efficient Fuel System, of course, it helps in reducing fuel consumption. There is only one variant for this scooter with red and white.

FEATURE

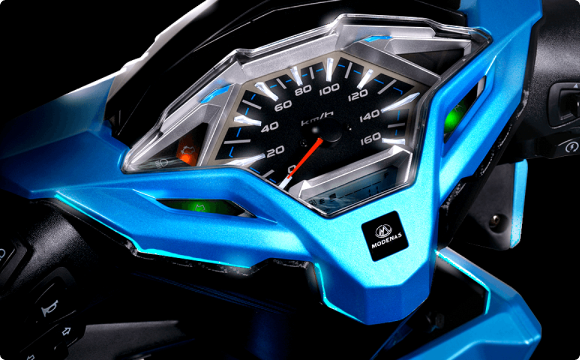

METER GAUGE WITH DIGITAL FUEL LEVEL

A modern touch to the instrument panel

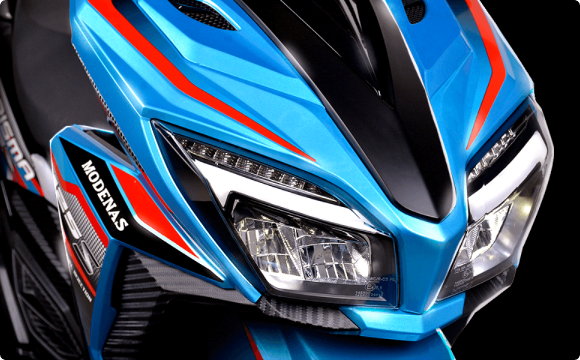

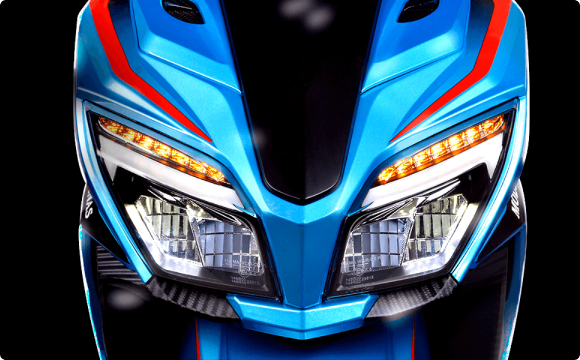

BRILLIANT DUAL LED HEADLIGHTS WITH DRL

Powerful lights for bright road view.

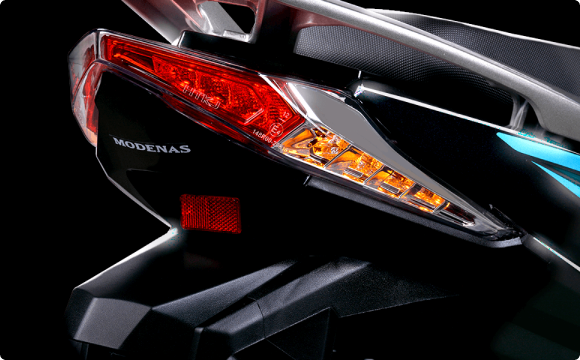

STYLISH LED REAR BRAKE LIGHTS

Strong light with modern & stylish design for maximum visibility.

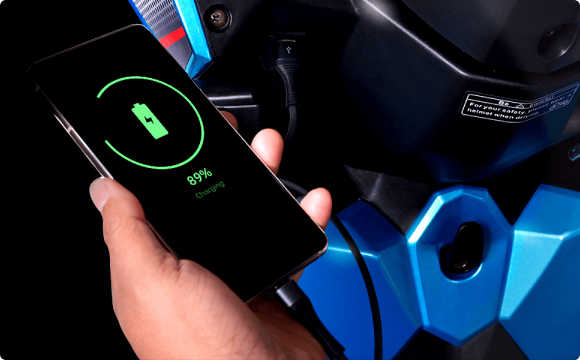

USB CHARGING PORT

Charge your digital devices on-the-go.

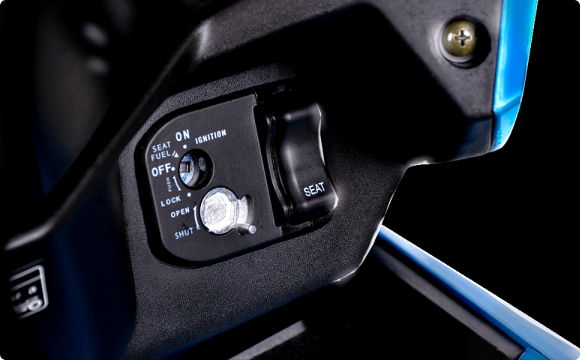

SEAT OPENER BUTTON

Efficient & hassle-free.
HAZARD LIGHT

For your safety convenience.

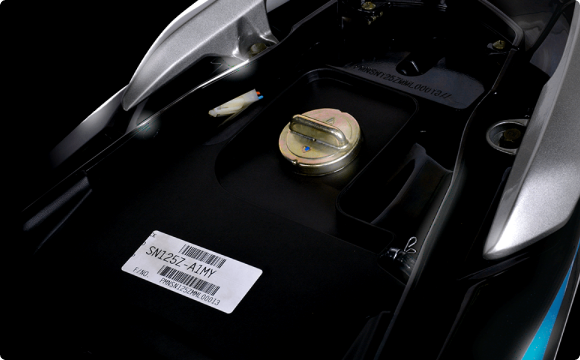

LARGE 5.1 L FUEL TANK

Worry-free - best for everyday ride.

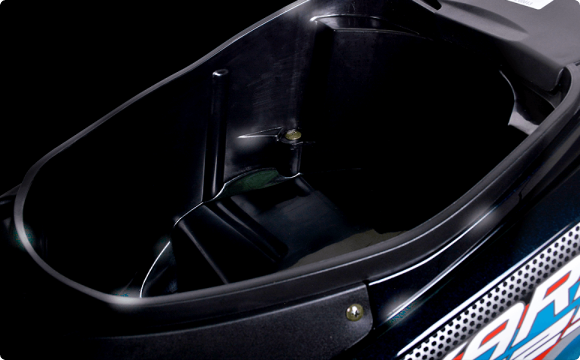

SPACIOUS 14L UNDER-SEAT COMPARTMENT

Accommodate your belongings safely.

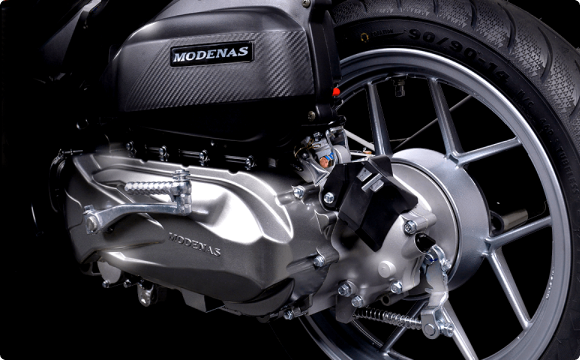

125CC ENGINE

125cc engine with fuel injection that meets new generation EURO4 standards to increase optimal performance.

SPECIFICATIONS

2 PISTON CALIPER FRONT

DISC BRAKE

USB CHARGING

PORT

14 LITRE

STORAGE COMPARTMENT

ENGINE

Engine

4-stroke SOHC, Single Cylinder

Fuel System

Fuel Injection

Displacement

124.8 cm3

Capacity

125cc

Ignition System

Primary Kick & Electric Starter

Bore X Stroke

52.4 mm x 57.9 mm

Fuel Tank Capacity

5.1 L

Compression Ratio

10 :1

Cooling System

Air Cooled

TRANSMISSION

Type

V-Belt Automatic

Clutch

Dry, Centrifugal

Driving System

V-Belt

CHASIS

Frame Type

Underbone

Overall Length

1,890 mm

Front Suspension

Telescopic Fork

Overall Width

670 mm

Rear Suspension

Swing arm, Monoshock

Overall Height

1,120 mm

Front Brake

Disc

Seat Height

770 mm

Rear Brake

Drum

Ground Clearance

120 mm

Front Tyre

80/90-14M/C 40R Tubeless

Wheelbase

1,250 mm

Rear Tyre

90/90-14M/C 46P, Tubeless

ELECTRICAL SYSTEM

Battery

12v 5Ah

Fuse

10A

Headlight

LED

Tail / Brake Light

LED

Turn Signal

LED

DOWNLOAD

Get brochure & catalogue of this model to learn more about the motorcycle model.

BROCHURE KARISMA 125...

KARISMA125S_BROCHURE...

8.47 MB

PARTS CATALOGUE KARI...

33.81 MB

** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).

Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual.

Specifications are subject to change.
