CONCEPT

CT 115S

Modenas CT115s (2015) is a budget moped bike with an air-cooled, 4-stroke SOHC, 114.8 CC engine with 4-Speed transmission. It produces 8.9 Hp power at 9500 RPM and 8.1 Nm maximum torque at 5000 RPM.

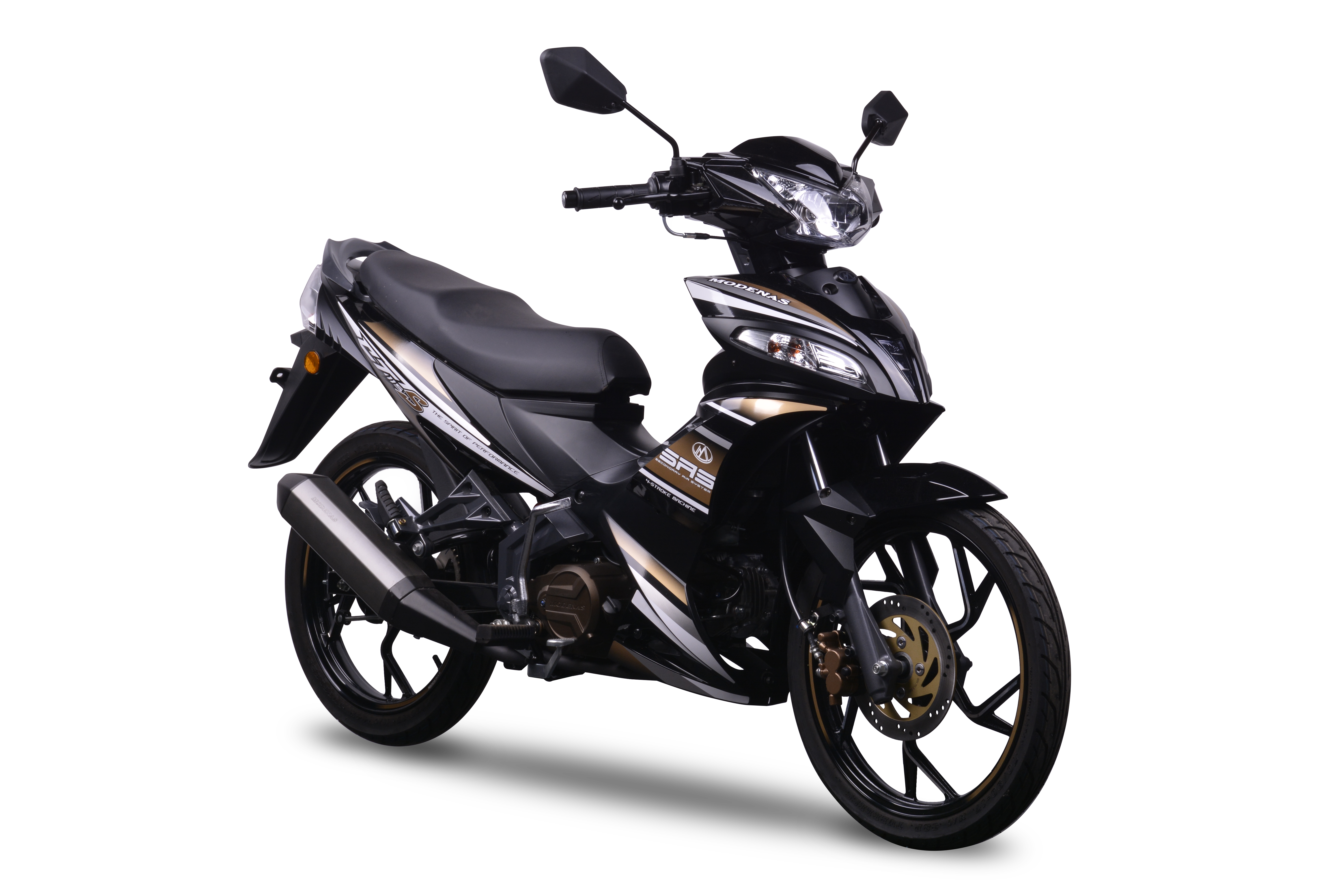

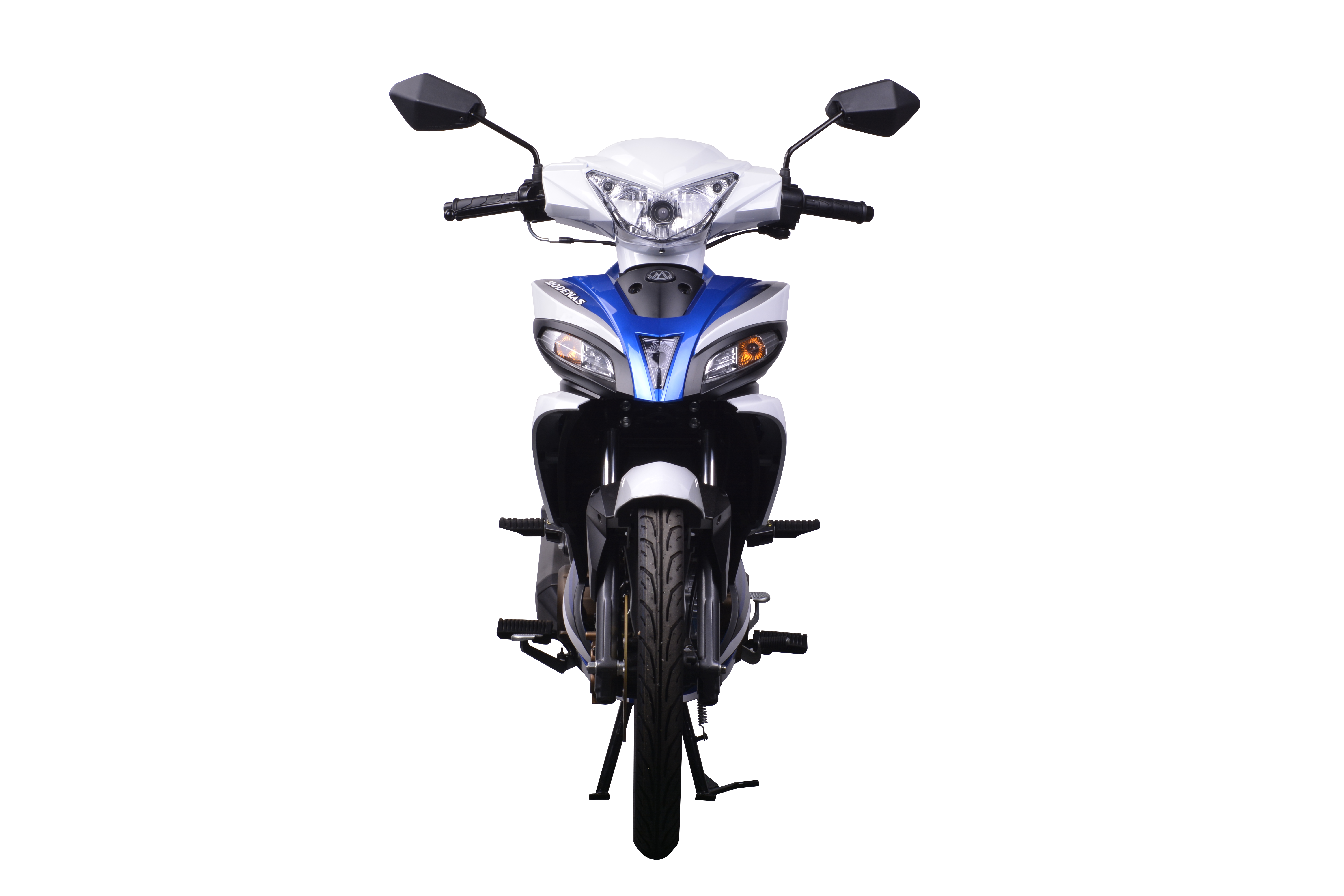

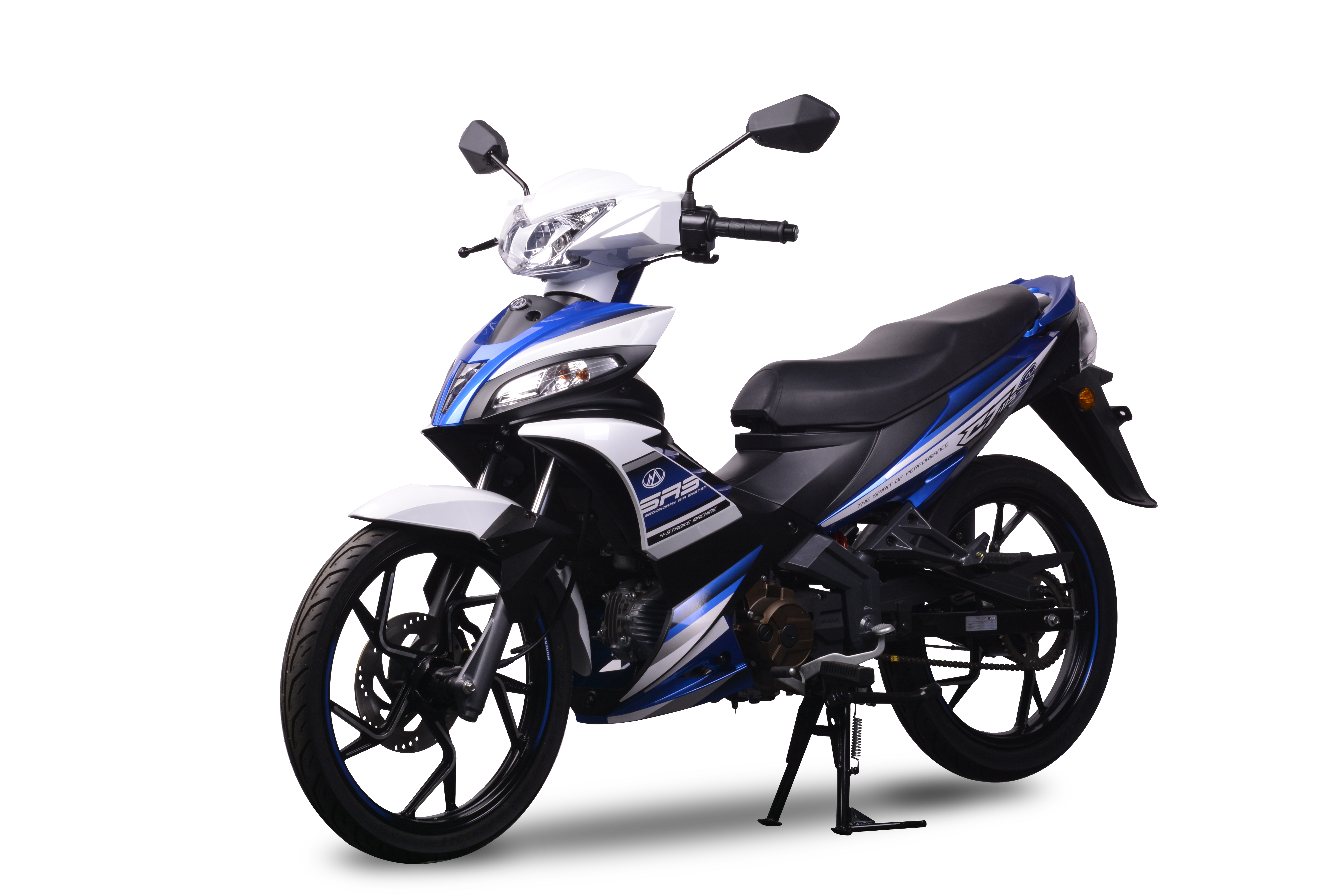

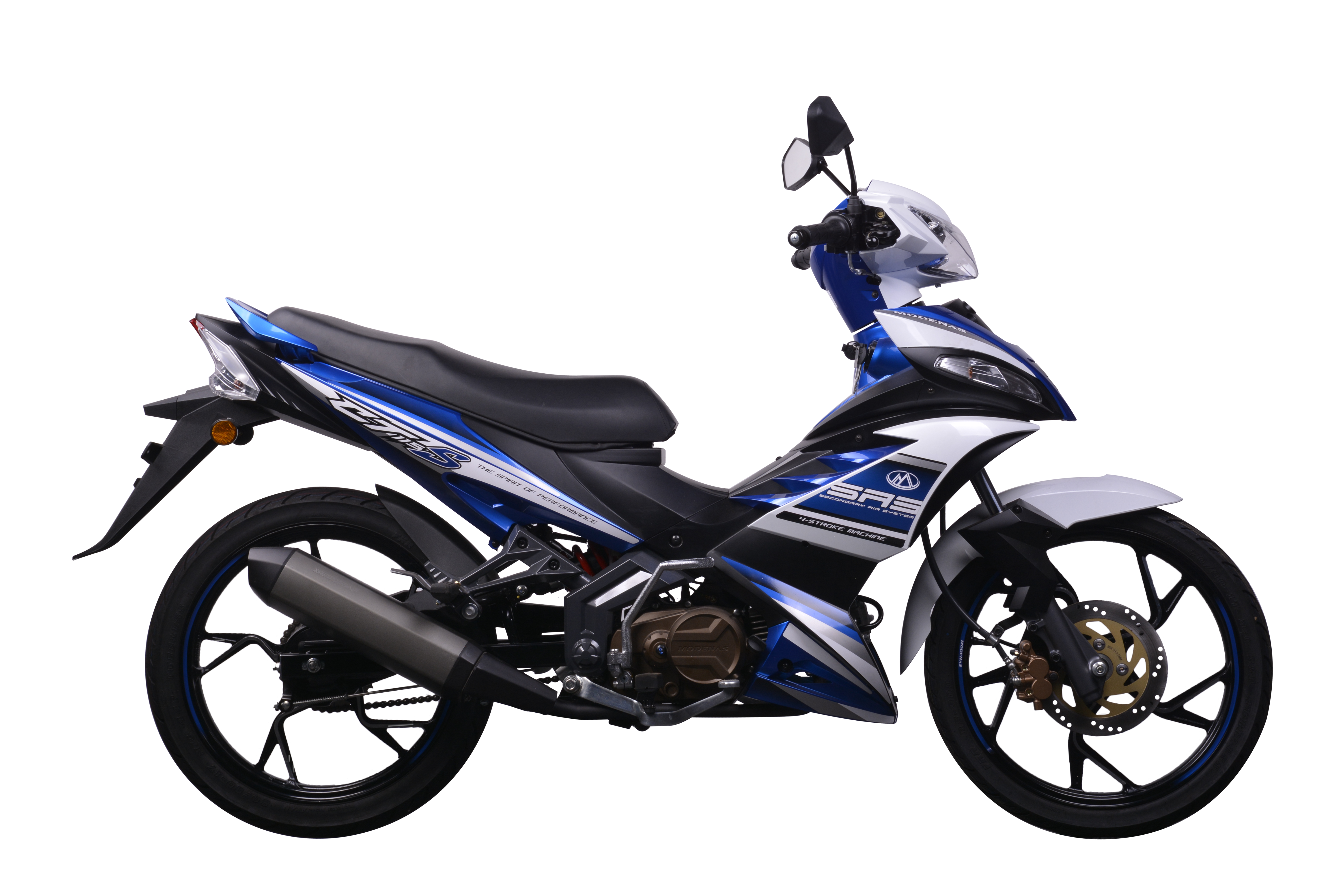

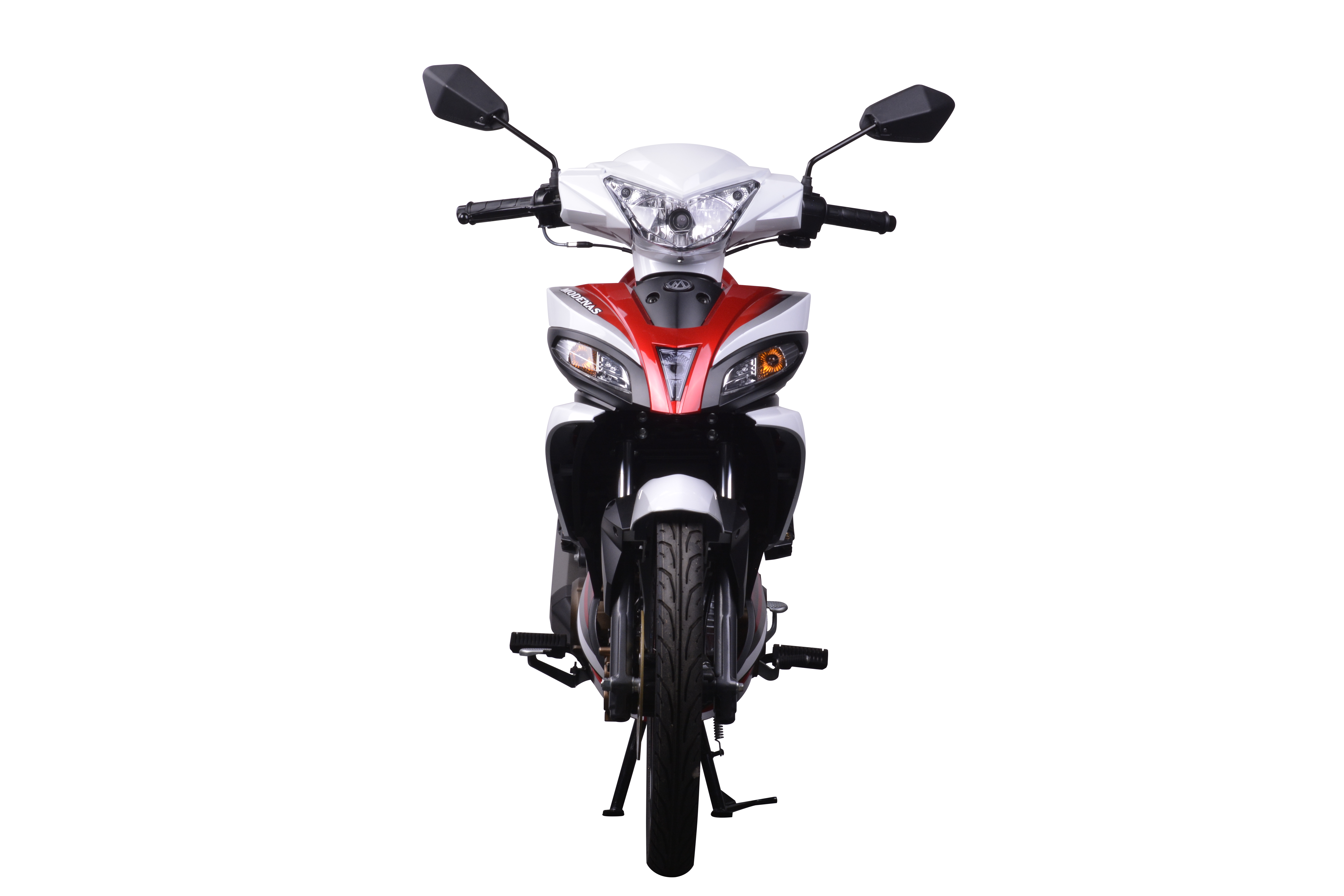

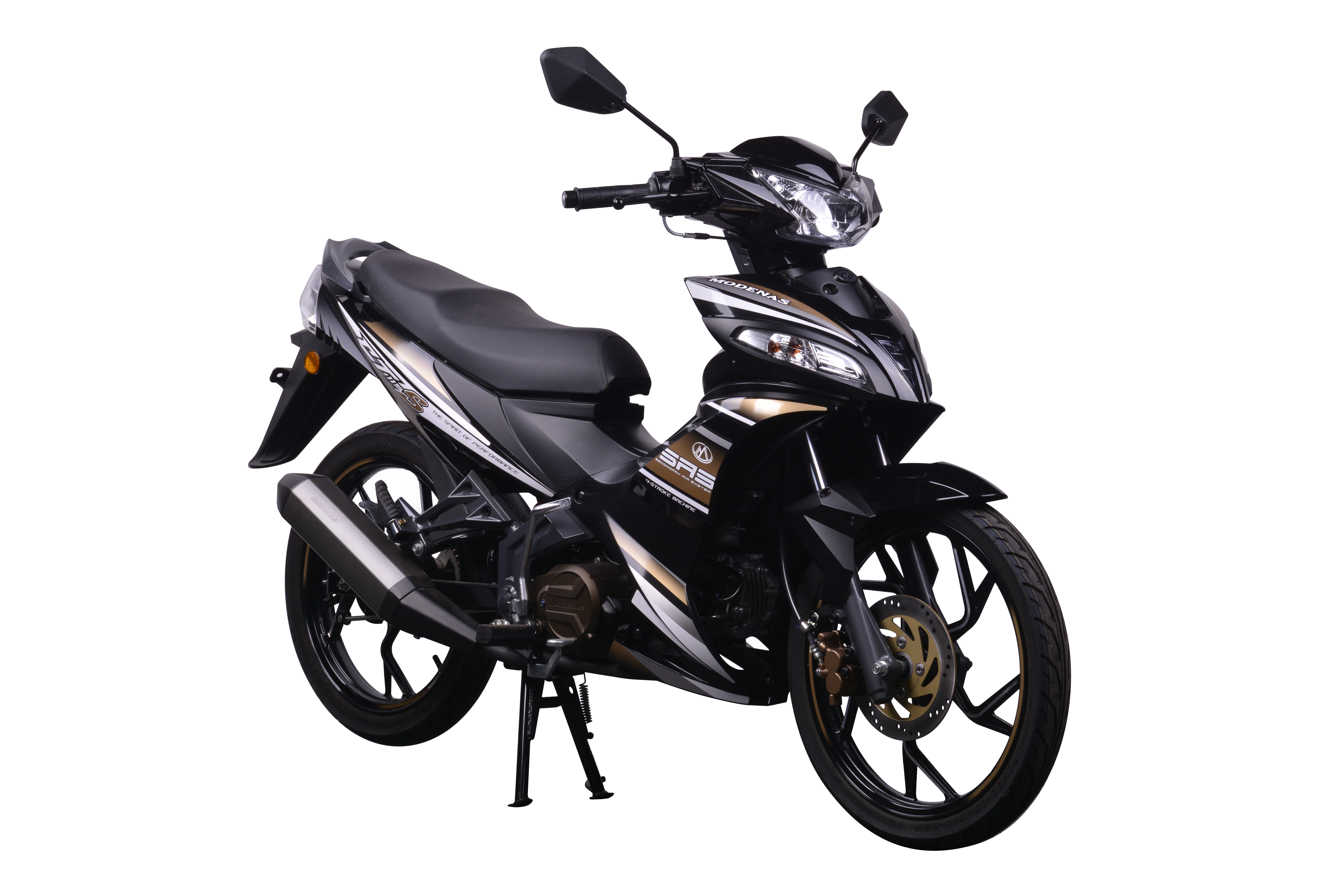

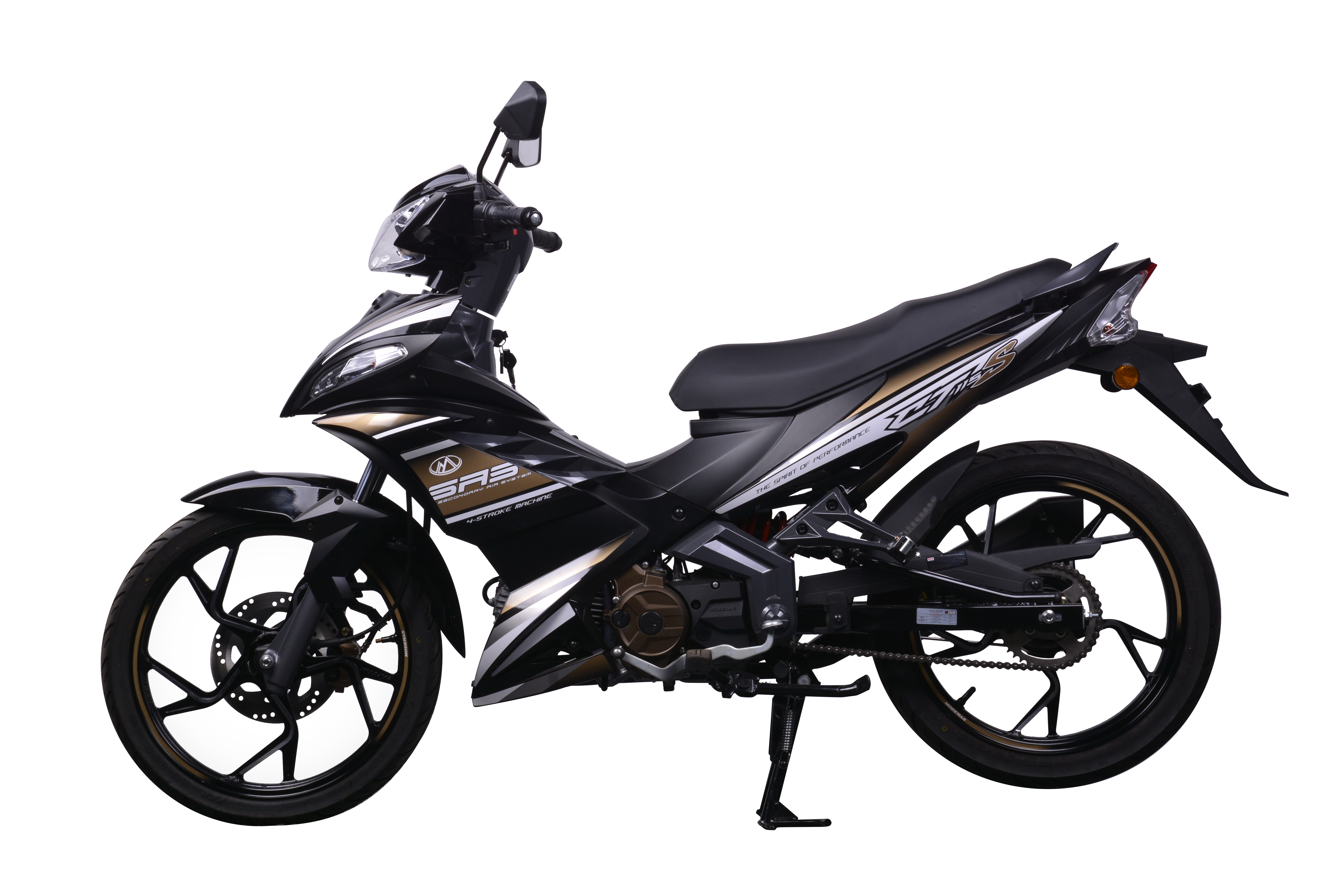

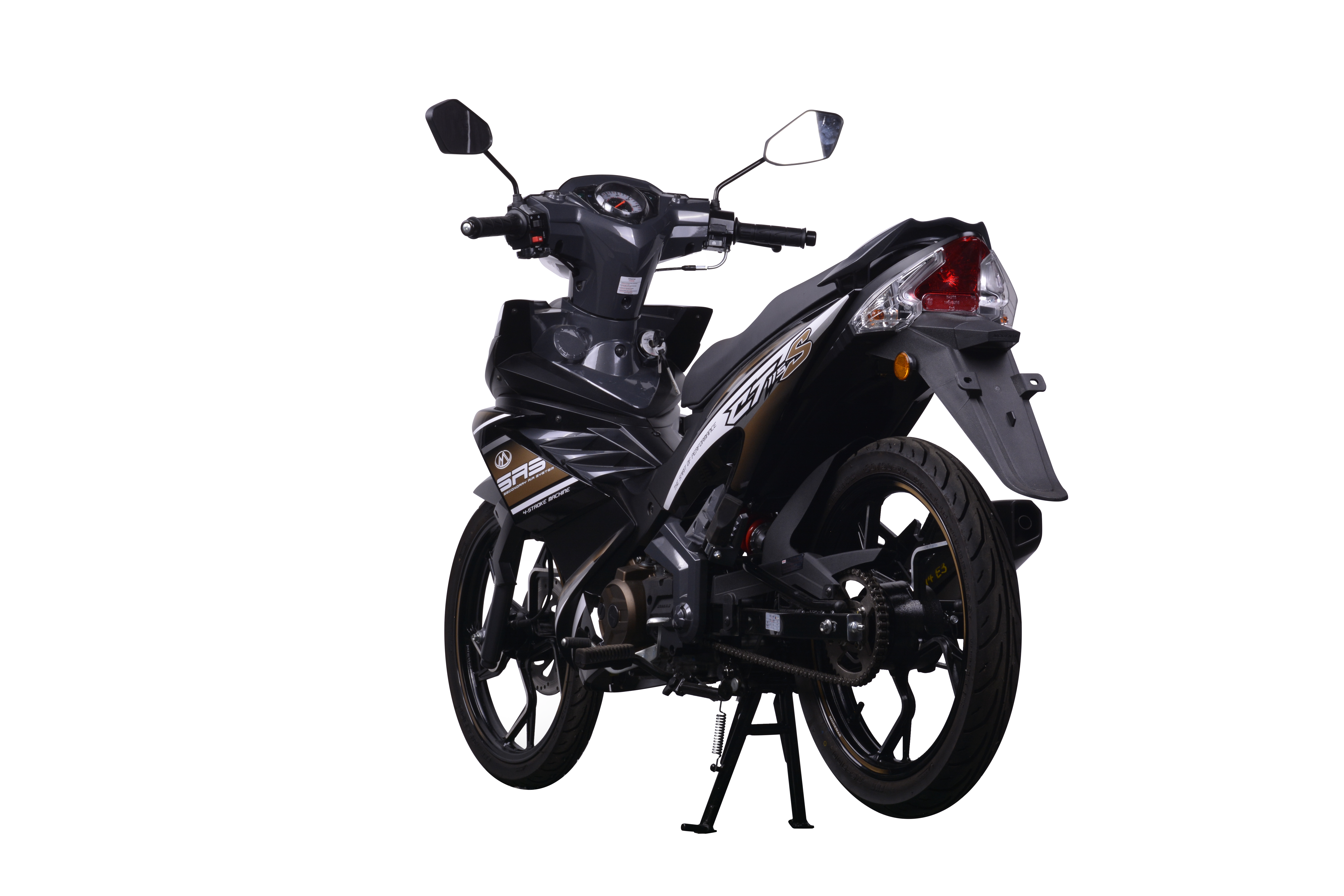

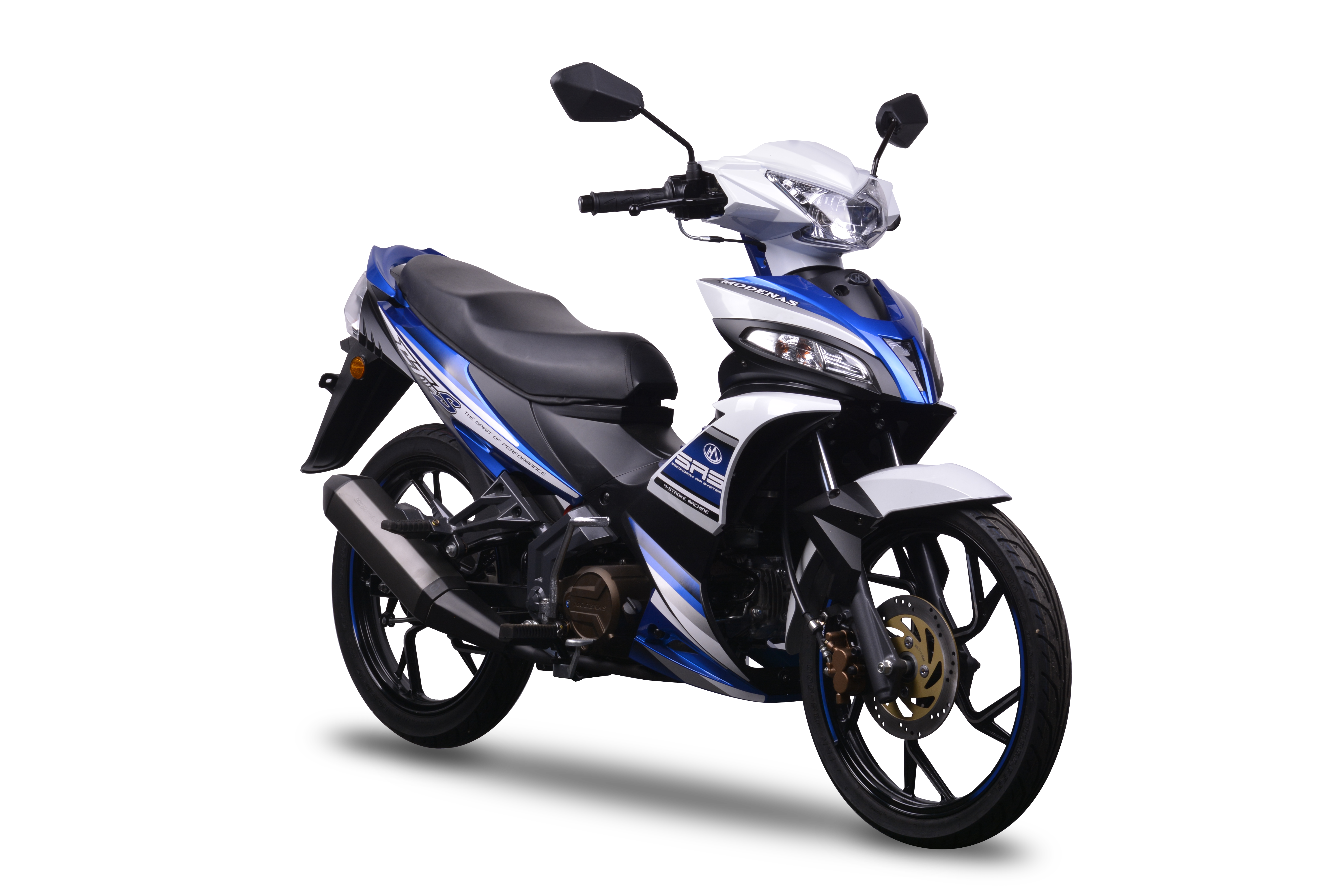

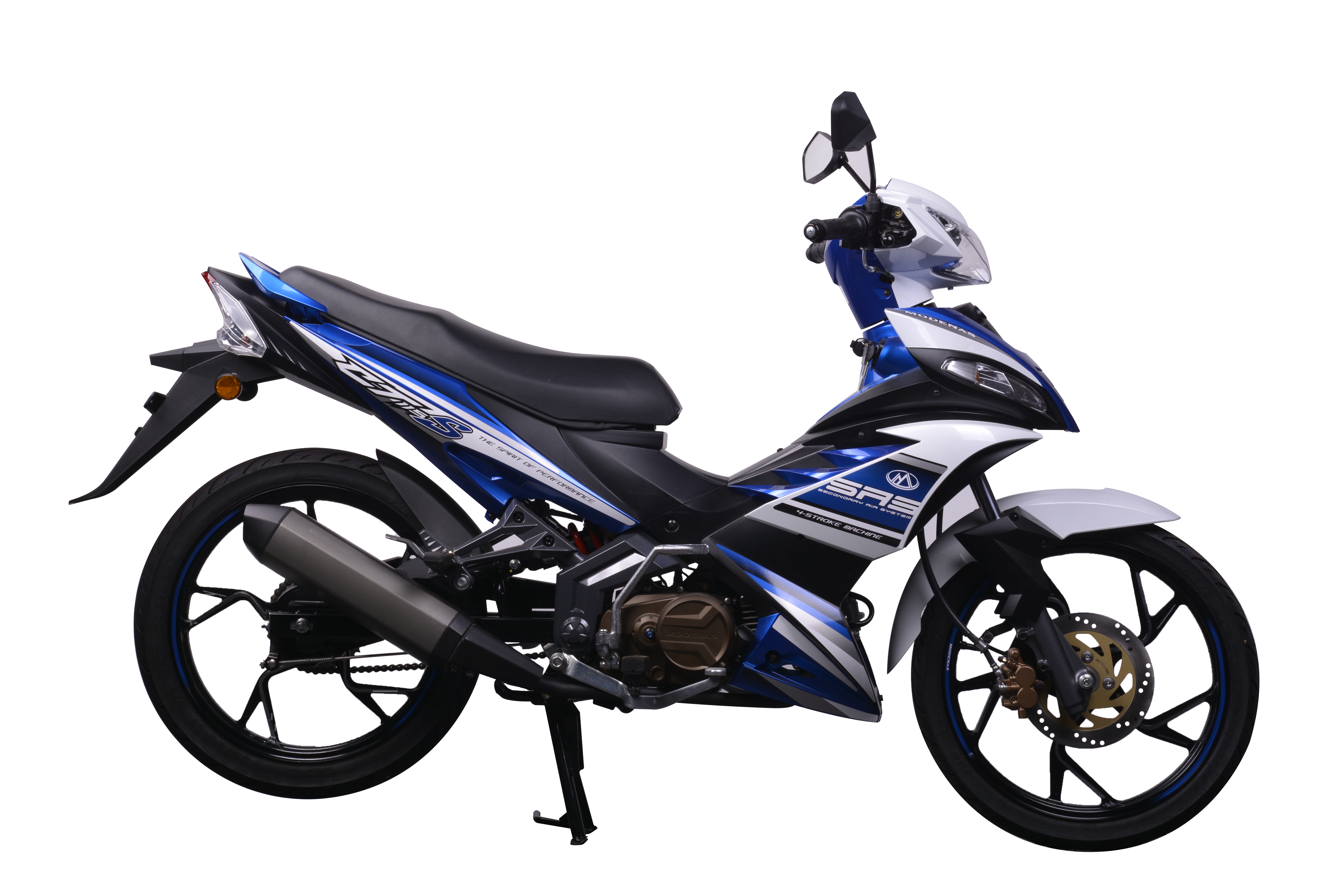

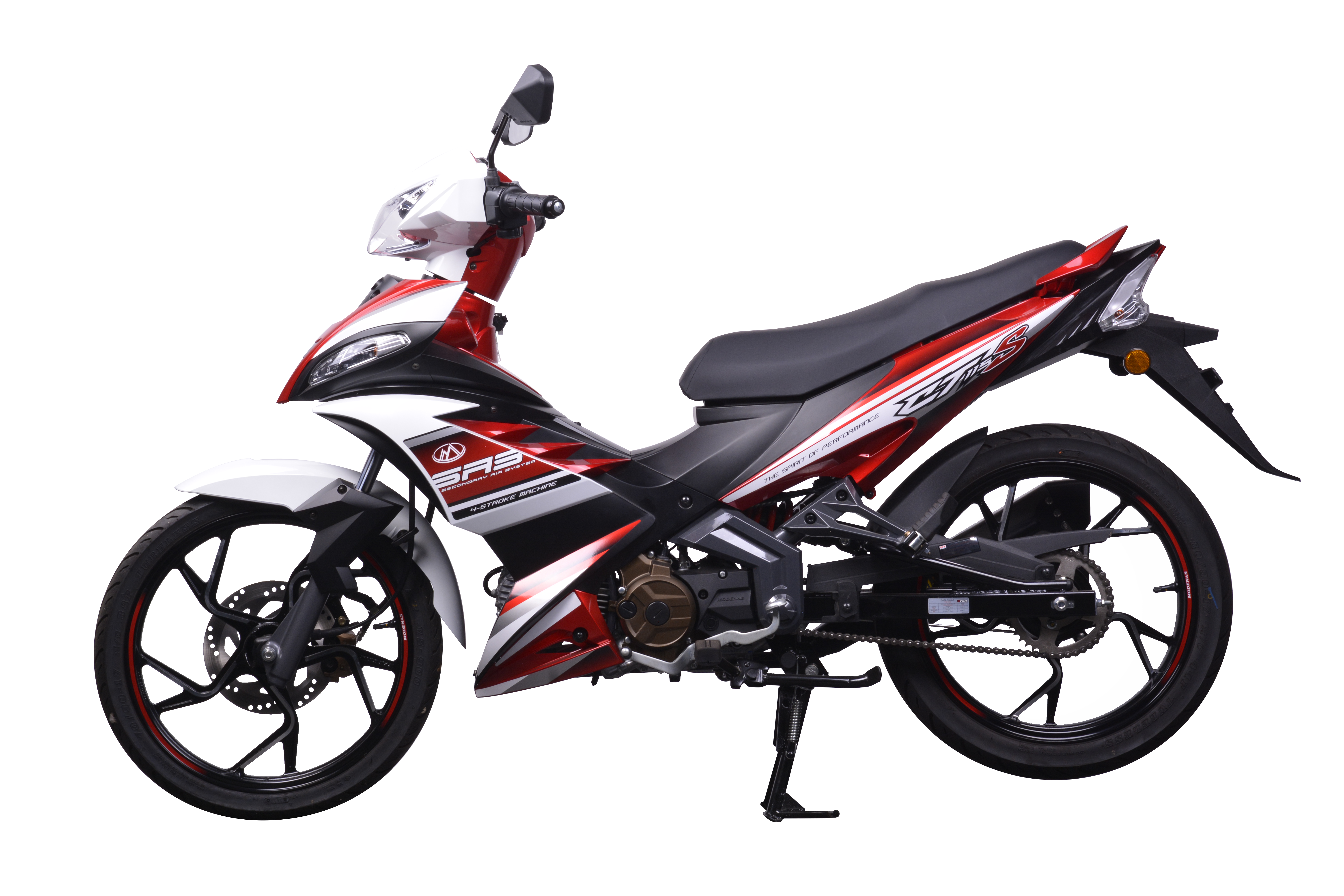

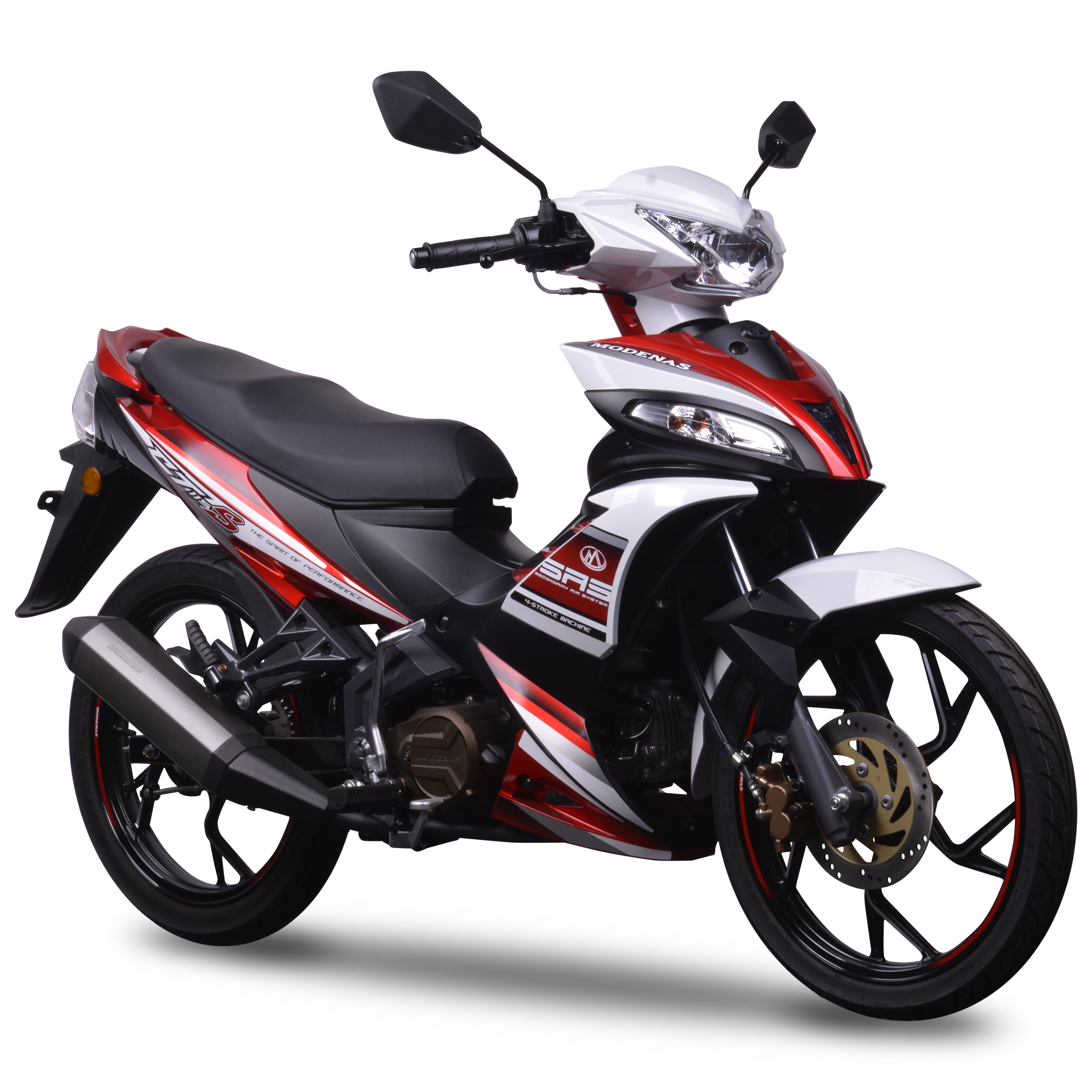

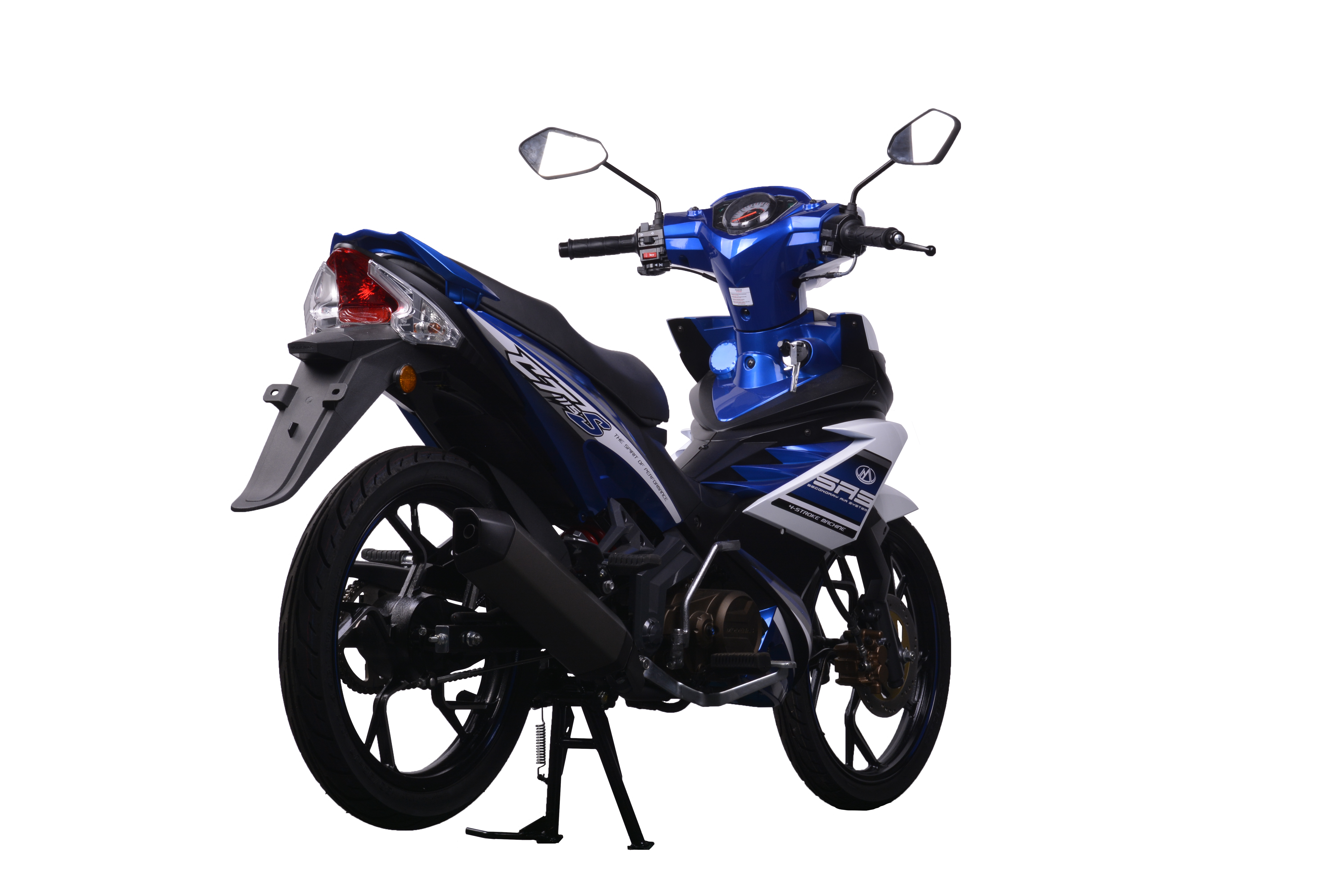

Modenas CT115s (2015) is available in Red, Blue and Black colors. The CT115s is also available with telescopic front suspension and Trailing Swing Arm for the rear suspension. For braking, it uses a single disc for the front wheel and a Drum brake for the rear wheel.

FEATURE

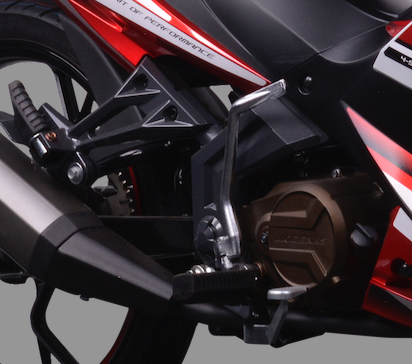

FOOT & LEG PROTECTOR

More stylish and sporty design to keep the rider protected

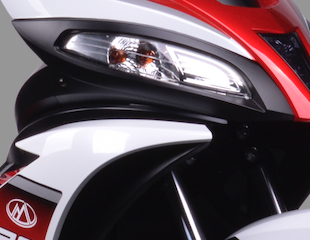

INDICATOR & HEADLIGHT

Aggressive light design exactly like a high-powered motorcycle

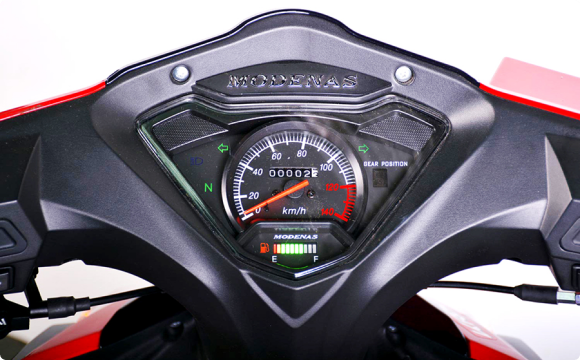

SPEEDOMENTER

Sportier and neater speedometer.

SPECIFICATIONS

2 PISTON CALIPER FRONT

DISC BRAKE

USB CHARGING

PORT

MONOSHOCK REAR

ABSORBER

ENGINE

Engine

4-stroke SOHC, Single Cylinder

Fuel System

SPACO, AV20

Displacement

114.8 cm3

Fuel Type

Unleaded Petrol

Capacity

115cc

Ignition

Magneto to CDI

Bore X Stroke

53.75 mm x 50.6 mm

Starting System

Primary Kick & Electric Starter

Compression Ratio

9.9 :1

Fuel Tank Capacity

4.8 L

Cooling System

Air Cooled

TRANSMISSION

Type

4 Speed, Rotary

Primary Reduction Ratio

3.048

Final Reduction Ratio

3.000

Clutch

Multiple Disc, Centrifugal and Wet

Driving System

Drive Chain

CHASIS

Frame Type

Pipe Backbone, Steel Pipe

Overall Length

1,970 mm

Front Suspension

Telescopic Fork

Overall Width

725 mm

Rear Suspension

Trailing Swing arm, Arm Suspension

Overall Height

1,084 mm

Front Brake

Disc

Seat Height

750 mm

Rear Brake

Drum

Ground Clearance

145 mm

Front Tyre

70/90-17M/C 38P, Tubeless

Wheelbase

1,260 mm

Rear Tyre

80/90-17M/C 44P, Tubeless

Curb Weight

99 kg*

ELECTRICAL SYSTEM

Battery

12v 5Ah

DOWNLOAD

Get brochure & catalogue of this model to learn more about the motorcycle model.

BROCHURE _CT115S

BROCHURE_CT115S.pdf

0.43 MB

PARTS CATALOGUE

P514 PARTS-CATALOGUE...

36.47 MB

** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).

Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual.

Specifications are subject to change.
