CONCEPT

2020

ELEGAN 250 ABS

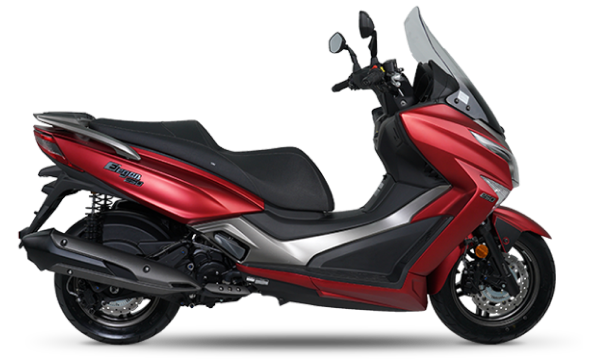

Modenas Elegan 250 ABS (2020) is a scooter bike with a Liquid-cooled, 4-stroke SOHC, 250 CC engine with CVT transmission. It produces 22.1 Hp power at 7000 RPM and 22.4 Nm maximum torque at 6500 RPM.

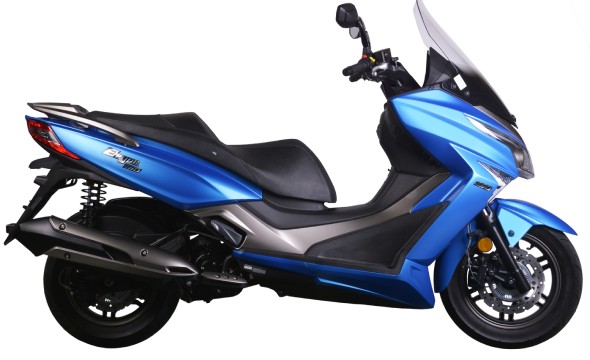

Modenas Elegan 250 ABS (2020) is available with new colors which are Satin Matte Blue and Satin Matte Black. The Elegan 250 ABS is also available with telescopic front suspension and Trailing Swing Arm for the rear suspension. For braking, it uses single disc for the front and rear with ABS support.

FEATURE

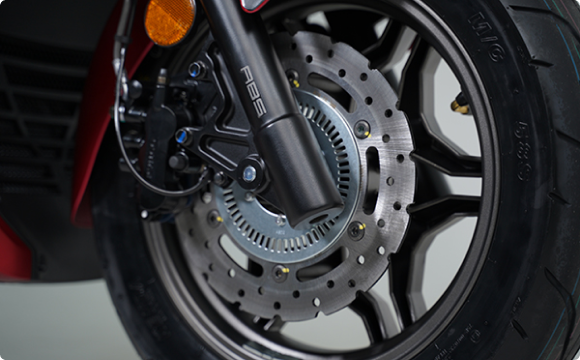

FRONT REAR ABS BRAKES

Equipped with dual channel ABS system for front and rear brakes provides superior stopping power in all weather conditions.

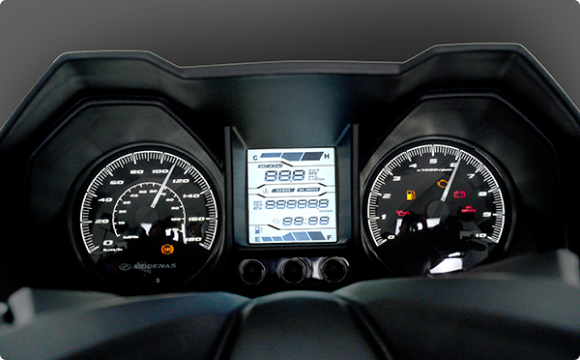

MULTI-FUNCTIONAL SPEEDOMETER

The stylish speedometer gives you a clear display with center section for additional information.

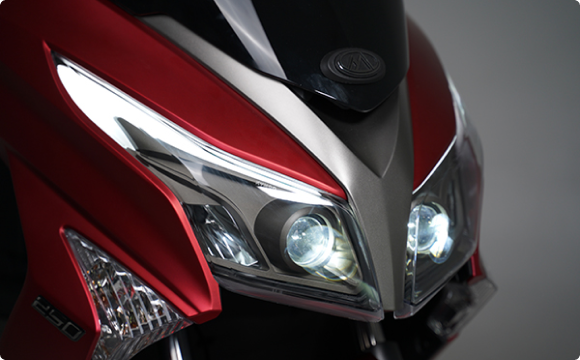

PROJECTOR HEADLIGHT

The stylish projector headlisht equipped with LED Day Running Light (DRL) helps you to see and be seen. The powerful and agresive lights gives a clear and bright view of the road.

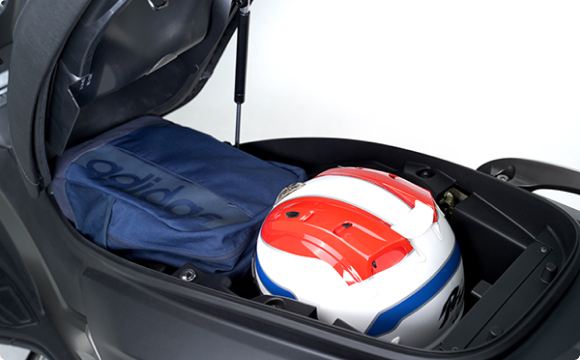

STORAGE COMPARTMENT

Spacious underseat compartment equipped with LED light for your convenience at night

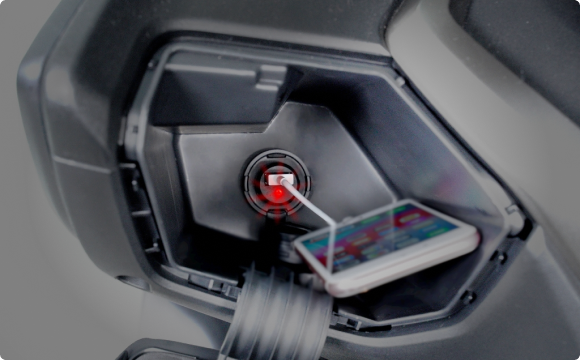

USB CHARGING PORT

ELEGAN 250 ABS is fitted with USB charger socket which is located at the left panel below the handlebar. This handy feature enables you to charge your smart phones.

SPECIFICATIONS

DUAL CHANNEL

ABS BRAKES

USB CHARGING

PORT

STORAGE COMPARTMENT

WITH LED LIGHT

ENGINE

Engine

4-stroke SOHC, Single Cylinder, 2-valves

Fuel System

Fuel Injection

Displacement

249.1 cm3

Fuel Type

Unleaded Petrol

Ignition System

ECU (Full Transistor)

Bore X Stroke

72.7 mm x 60 mm

Fuel Tank Capacity

12.5 L

TRANSMISSION

Type

CVT Automatic

Clutch

Dry, Centrifugal

Driving System

Belt Drive

CHASIS

Frame Type

Underbone

Overall Length

2, 235 mm

Front Suspension

Telescopic Fork

Overall Width

810 mm

Rear Suspension

Trailing Swing Arm

Overall Height

1,120 mm

Rear Suspension

Swing arm, Monoshock

Front Brake

Disc 260mm ABS

Rear Brake

Disc 240mm ABS

Front Tyre

120/80 R14

Wheelbase

1,540 mm

Rear Tyre

150/70 R13

Curb Weight

195 kg*

ELECTRICAL SYSTEM

Battery

12v 5Ah

Headlight

LED

Fuse

10A

Tail / Brake Light

LED

Turn Signal

LED

DOWNLOAD

Get brochure & catalogue of this model to learn more about the motorcycle model.

BROCHURE ELEGAN 250...

Elegan250absBrochure...

0.45 MB

PARTS CATALOGUE

P411 ELEGAN PARTS CA...

56.94 MB

** The curb weight includes all materials and fluids required to operate properly, a full tank of fuel (over 90 percent capacity), and tool kit (if provided).

Read the Manual and all warnings on the product. Always wear a helmet, eye protection, and appropriate clothing for riding conditions. Never drive under the influence of drugs or alcohol. Follow the maintenance schedule in your Manual.

Specifications are subject to change.
